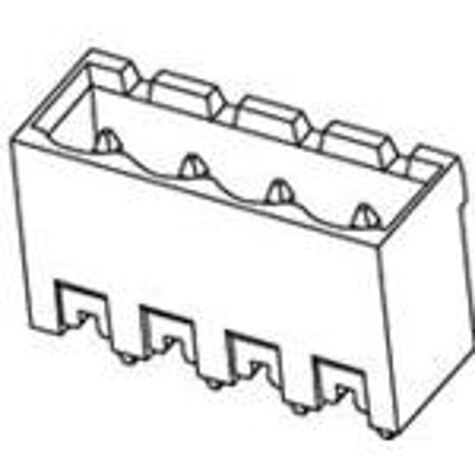

Specification	0395316505

Color	Green
Contact Material	Brass
Contact Mating Finish	Gold
Contact Tail Length	0.13 in
Current - UL	15 A
Header Orientation	Vertical
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.472 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	5
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Positions Per Level	5
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

039531 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Current - UL	Number of Levels	Pitch	Type	Voltage - UL	Header Orientation	Contact Mating Finish	Mounting Type	Number of Positions	Termination Style	Color	Positions Per Level	Housing Material	Material Flammability Rating	Contact Tail Length	Contact Material	Insulation Height
Molex 0395311004	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Tin	Through Hole	4	Solder	Black	4	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395310021	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (2 Side)	300 V	Vertical	Tin	Through Hole	21	Solder	Black	21	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.15 in	Brass	0.472 in
Molex 0395315004	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (2 Side)	300 V	Vertical	Tin	Through Hole	4	Solder	Green	4	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.15 in	Brass	0.472 in
Molex 0395311012	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Tin	Through Hole	12	Solder	Black	12	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395314502	-40 °C	140 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Gold	Through Hole	2	Solder	Black	2	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395311011	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Tin	Through Hole	11	Solder	Black	11	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395314506	-40 °C	140 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Gold	Through Hole	6	Solder	Black	6	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395311017	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Tin	Through Hole	17	Solder	Black	17	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395311020	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Tin	Through Hole	20	Solder	Black	20	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
Molex 0395311015	-40 °C	105 °C	15 A	1	5.08 mm	Header Male Pins Shrouded (4 Side)	300 V	Vertical	Tin	Through Hole	15	Solder	Black	15	Nylon 6/6 PA66 Polyamide	UL94 V-0	0.13 in	Brass	0.472 in
