Specification	1301550139

Approval Agency	UL
Connector Style	California Style, NON-NEMA (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating	50 A
Features	Cord Grip, Strain Relief, Cover, Locking Blade
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Termination	Screw
Voltage Rating	125 V

130155 Series

Watertite Extreme Duplex GFCI Receptacle with Flip Lids, 2 Pole/3 Wire, NEMA 5-15, 125V

...

Part	Connector Style	Voltage Rating	Number of Positions	Features	Approval Agency	Connector Type	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Termination	Accessory Type	For Use With/Related Products	Voltage Rating (Option 1)	Voltage Rating (Option 2)

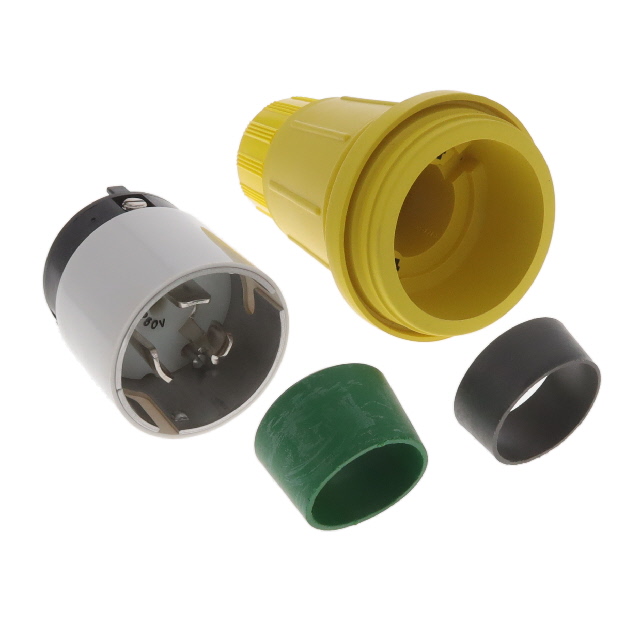

Molex 1301550155	California Style NON-NEMA (2P3W)	250 V	3	Cord Grip Locking Blade Strain Relief	CSA UL	Male Blades Plug	50 A	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Screw
Molex 1301550195												Cord End Sealing Kit	Power Entry Inlets and Outlets
Molex 1301550009
Molex 1301550063
Molex 1301550093	NON-NEMA (3P4W)	125 V	4	Flip Lid Locking Blade	UL	Female Sockets Receptacle	50 A	Dust Tight Waterproof	IP67	Flange Panel Mount	Screw

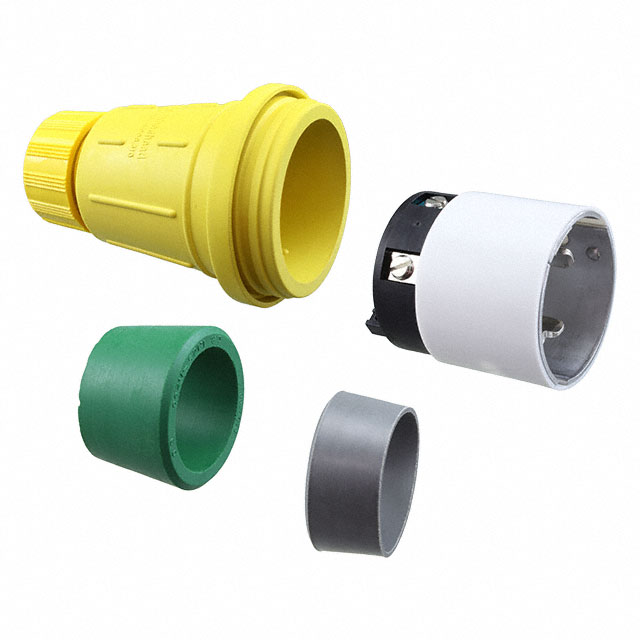

Molex 1301550142	California Style NON-NEMA (3P4W)		3	Cord Grip Locking Blade Strain Relief	CSA UL	Male Blades Plug	50 A	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	Screw			125 VAC	250 VAC
Molex 1301550094												Cover Plate	Watertite Wet-Location Wiring Solutions
Molex 1301550110	NEMA L5-20R	125 V	3	Flip Lid GFI (Ground Fault Interrupt)		Female Sockets Receptacle	20 A	Dust Tight Waterproof	IP67	Wall Mount	Screw
Molex 1301550100	NON-NEMA (2P3W)	125 V	3	Locking Blade		Female Sockets Receptacle	50 A			Outlet Box	Screw
Molex 1301550050
