Description
General part information

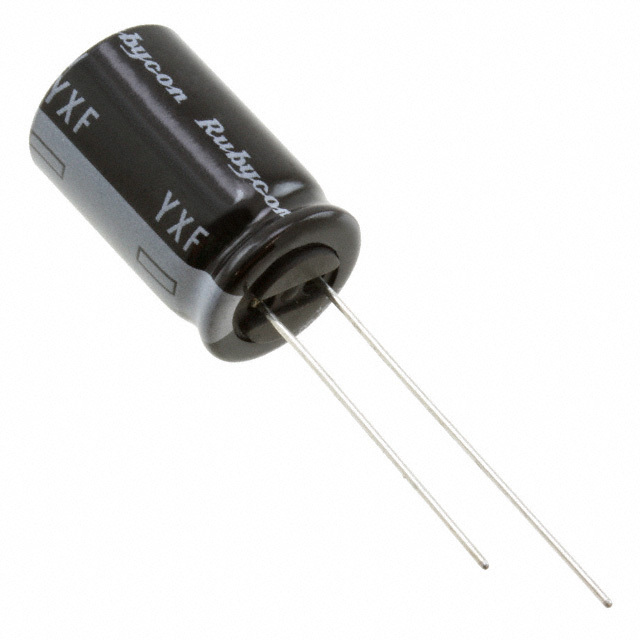

6.3YXF3300MEFC12.5X20
3300 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 6.3YXF3300MEFC12.5X20 |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 µF |
| Height - Seated (Max) | 0.866 in |
| Impedance | 62 mOhm |
| Lead Spacing | 0.197 in |
| Lifetime | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.3 A, 1.04 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
