Description
General part information
2610.80004

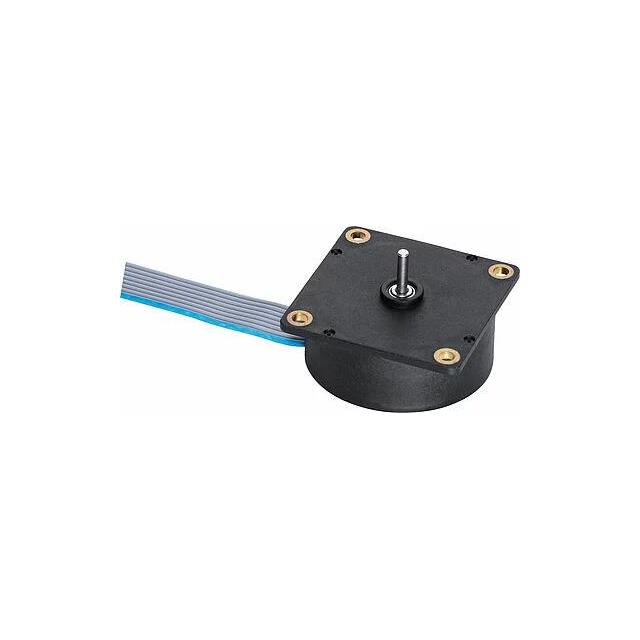

Brushless (BLDC) DC Motor Standard 3410 RPM 9W 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 2610.80004 |
|---|---|
| Diameter - Shaft | 0.059 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.276 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 1.181 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Power - Rated | 9 W |
| RPM | 3410 RPM |
| Size / Dimension Diameter | 1.024 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads |
| Torque - Rated (mNm) | 2.85 mNm |
| Torque - Rated (oz-in) | 0.404 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
