2643169351
ActiveFair-Rite Products Corp.
FERRITE 89OHM SOLID 27.51X1.35MM
2643169351
ActiveFair-Rite Products Corp.
FERRITE 89OHM SOLID 27.51X1.35MM
Description
General part information
2643169351

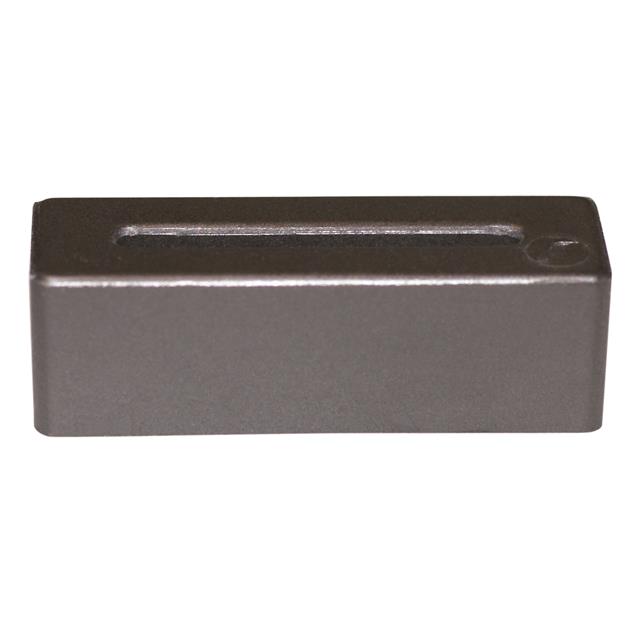

Solid Free Hanging Ferrite Core 89Ohm @ 100MHz ID 1.083" W x 0.053" H (27.51mm x 1.35mm) OD 1.325" W x 0.264" H (33.66mm x 6.71mm) Length 0.520" (13.21mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2643169351 |
|---|---|
| Design | Solid |
| Impedance | 89 Ohm |
| Inner Dimension Height | 0.053 in |
| Inner Dimension Width | 1.083 in |
| Length | 0.52 in |
| Material | 43 |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.264 in |
| Outer Dimension Width | 1.325 in |
| Type | Flat |
