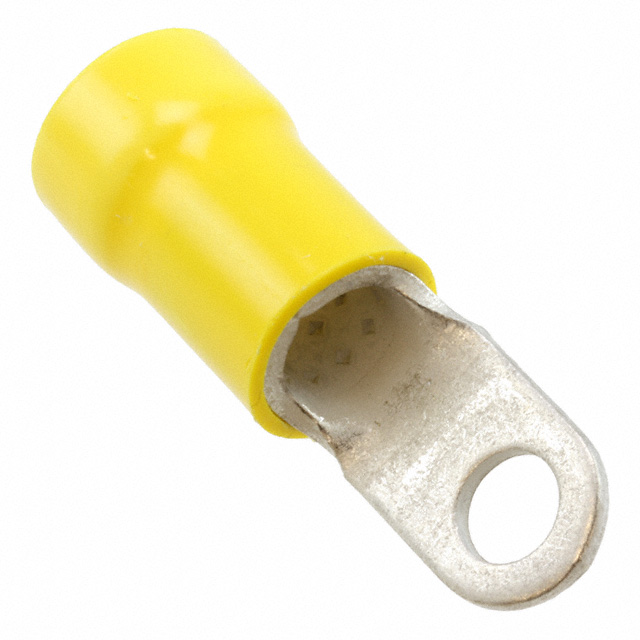

Specification	0190710253

Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	0.515 in
Length - Overall	1.756 in
Material - Insulation	PVC, Poly-Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.067 in
Wire Gauge	4 AWG

019071 Series

Part	Terminal Type	Wire Gauge	Mounting Type	Contact Material	Length - Overall	Color	Contact Finish	Termination	Insulation	Thickness	Features	Width - Outer Edges	Stud/Tab Size	Material - Insulation	Insulation Diameter	Stud/Tab Size (Type)	Stud/Tab Size
Molex 0190710146	Circular	8 AWG	Free Hanging (In-Line)	Copper	1.43 in	Red	Tin	Crimp	Insulated	0.045 in	Brazed Seam	0.583 in	10 Stud	Poly-Vinyl Chloride PVC	0.31 in
Molex 0190710289	Circular	2 AWG	Free Hanging (In-Line)	Copper	2.527 in	Red	Electro-Tin	Crimp	Insulated	0.075 in	Brazed Seam	0.867 in	0.5 Stud	Poly-Vinyl Chloride PVC	0.65 in
Molex 0190710153	Circular	8 AWG	Free Hanging (In-Line)	Copper	1.43 in	Red	Tin	Crimp	Insulated	0.045 in	Brazed Seam	0.583 in	0.3125 in	Poly-Vinyl Chloride PVC	0.31 in	Stud	16 Stud 5 Stud
Molex 0190710136	Circular	8 AWG	Free Hanging (In-Line)	Copper	1.313 in	Red	Tin	Crimp	Insulated	0.045 in	Brazed Seam	0.468 in	10 Stud	Poly-Vinyl Chloride PVC	0.33 in
Molex 0190710134	Circular	8 AWG	Free Hanging (In-Line)	Copper	1.311 in	Red	Tin	Crimp	Insulated	0.045 in	Brazed Seam	0.468 in	8 Stud	Poly-Vinyl Chloride PVC	0.33 in
Molex 0190710144	Circular	8 AWG	Free Hanging (In-Line)	Copper	1.311 in	Red	Tin	Crimp	Insulated	0.045 in	Brazed Seam	0.468 in	0.3125 in	Poly-Vinyl Chloride PVC	0.33 in	Stud	16 Stud 5 Stud
Molex 0190710312	Circular	2/0 AWG	Free Hanging (In-Line)	Copper	2.654 in	Yellow	Electro-Tin	Crimp	Insulated	0.083 in	Brazed Seam	0.948 in	0.3125 in	Poly-Vinyl Chloride PVC	0.735 in	Stud	16 Stud 5 Stud
Molex 0190710219	Circular	6 AWG	Free Hanging (In-Line)	Copper Alloy	1.596 in	Blue	Electro-Tin	Crimp	Insulated	0.05 in		0.485 in	8 Stud	Poly-Vinyl Chloride PVC	0.44 in
Molex 0190710279	Circular	2 AWG	Free Hanging (In-Line)	Copper	2.11 in	Red	Electro-Tin	Crimp	Insulated	0.075 in	Brazed Seam	0.63 in	10 Stud	Poly-Vinyl Chloride PVC	0.65 in
Molex 0190710192	Circular	6 AWG	Free Hanging (In-Line)	Copper Alloy	1.667 in	Blue	Electro-Tin	Crimp	Insulated	0.05 in		0.638 in	0.25 Stud	Poly-Vinyl Chloride PVC	0.44 in
