FMCA2092-18
ActiveFairview Microwave
CBL ASSY 2.92MMPLUG-2.92MMPLUG 1
FMCA2092-18
ActiveFairview Microwave
CBL ASSY 2.92MMPLUG-2.92MMPLUG 1
Description
General part information
FMCA2092-18

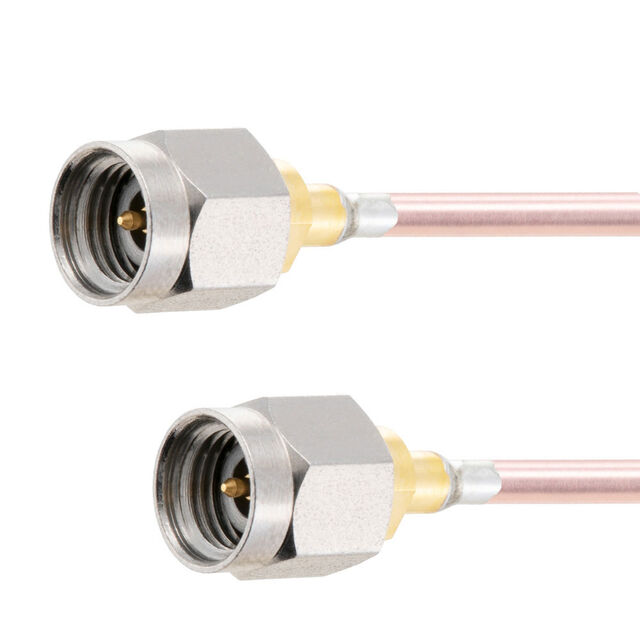

Cable Assembly Coaxial 2.92mm to 2.92mm 0.086" Semi-Rigid Cable 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2092-18 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.086 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Rigid Cable, Semi, Semi-Rigid Cable |
| Cable Type Size | 0.086, 0.086 " |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 45 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
