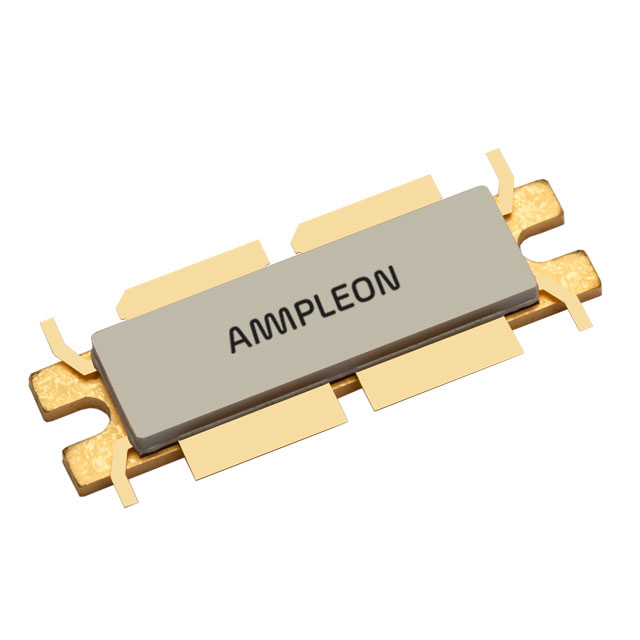

BLF6G15L-250PBRN:1
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF6G15L-250PBRN:1
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V LDMOST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLF6G15L-250PBRN:1 |
|---|---|
| Current - Test | 1.41 A |
| Current Rating (Amps) | 64 A |
| Frequency [Max] | 1.51 GHz |
| Frequency [Min] | 1.47 GHz |
| Gain | 18.5 dBi |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-1110A |
| Power - Output | 60 W |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLF6G15L-250PBRN:1
RF Mosfet 28 V 1.41 A 1.47GHz ~ 1.51GHz 18.5dB 60W LDMOST
Documents
Technical documentation and resources
