Technical Specifications
Parameters and characteristics for this part
| Specification | SYB10-15HG |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | <1d |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 3000 | $ 0.13 | |||
CAD
3D models and CAD resources for this part
Description
General part information

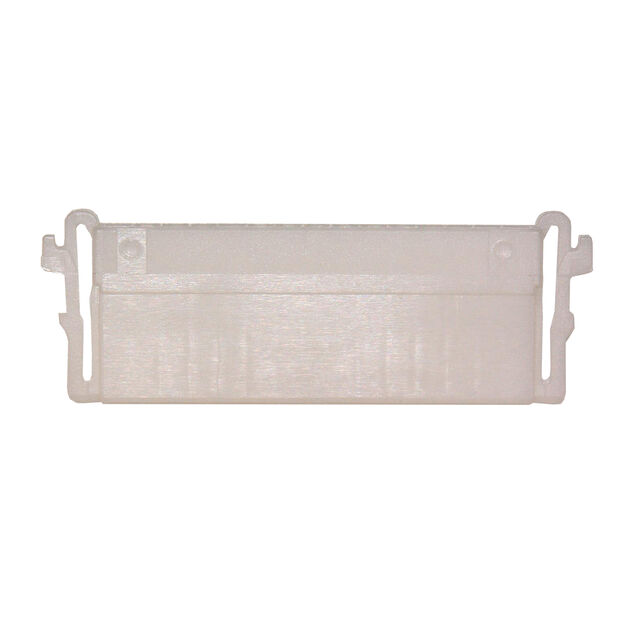

SYB10-15HG
15 Rectangular Connectors - Housings Plug White 0.079" (2.00mm)
