Description
General part information

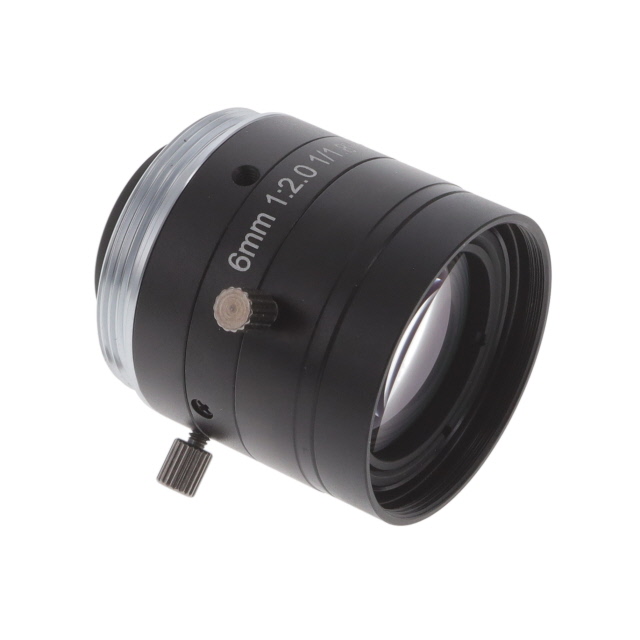

VFA1-118-5M06
Wide Angle Lens F2 0.007x ~ 0.058x 1/1.8" C-Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | VFA1-118-5M06 |
|---|---|
| Compatible Sensor Size (Max) (Code) | 1/1.8" |
| Depth Of Field | 11.6 mm |
| Diameter | 26.8 mm |
| Field of View Length (Maximum) | 769.5 mm |
| Field of View Length (Minimum) | 94.3 mm |
| Field of View Width (Maximum) | 1026 mm |
| Field of View Width (Minimum) | 125.7 mm |
| Filter Pore Size | 0.5 µm |
| Focal Length | 6 mm |
| Focal Ratio | 2 |
| Length | 23.5 mm |
| Magnification (Max) | 0.058 x |
| Magnification (Min) | 0.007 x |
| Mounting Type | C-Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| TV Distortion | 0.1 % |
| Type | Wide Angle |
| Working Distance (Maximum) | 900 mm |
| Working Distance (Minimum) | 100 mm |
