B18W1UY--20C000114U1930
ActiveHarvatek Corporation

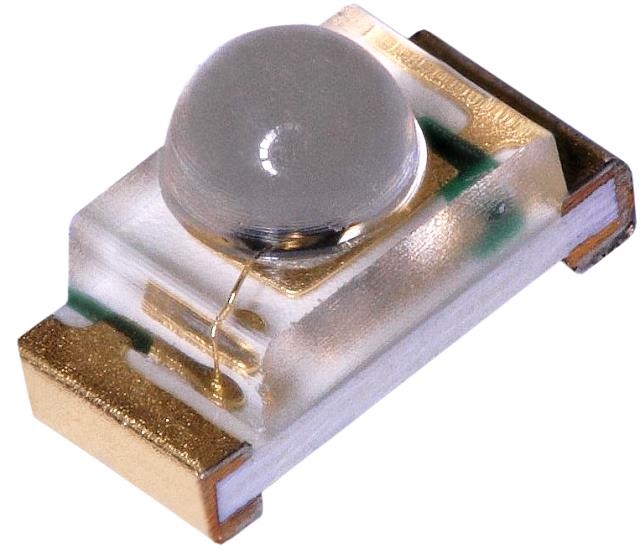

LED AMBER 0603 SMD
B18W1UY--20C000114U1930
ActiveHarvatek Corporation
LED AMBER 0603 SMD
Description
General part information
B18W1UY--20C000114U1930
Amber 589nm LED Indication - Discrete 2V 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B18W1UY--20C000114U1930 |
|---|---|
| Color | Amber |
| Height (Max) | 1.05 mm |
| Lens Diameter | 0.8 mm |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 360 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Size / Dimension Length | 1.6 mm |
| Size / Dimension Width | 0.8 mm |
| Viewing Angle | 55 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 589 nm |
| Wavelength - Peak | 591 nm |
