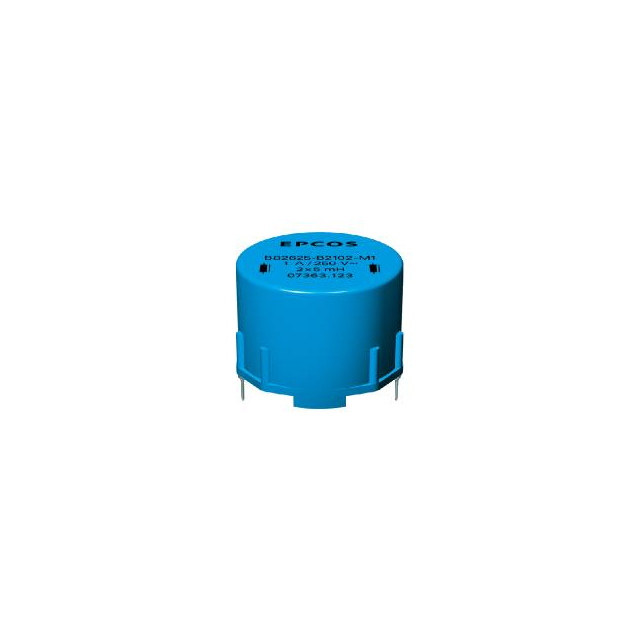

B82625B2302M001
ActiveEPCOS - TDK Electronics
CMC 700UH 3A 2LN TH PFC
B82625B2302M001
ActiveEPCOS - TDK Electronics
CMC 700UH 3A 2LN TH PFC
Description
General part information
B82625B2302M001
700 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 210mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82625B2302M001 |
|---|---|
| Approval Agency | ENEC, VDE |
| Current Rating (Max) | 3 A |
| DC Resistance (DCR) (Max) | 210 mOhm |
| DC Resistance (DCR) (Typ) | 210 mOhm |
| Features | PFC |
| Filter Type | Power Line |
| Height (Max) | 1.181 in |
| Inductance | 700 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Length | 1.732 in |
| Size / Dimension Width | 1.669 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 350 V |
