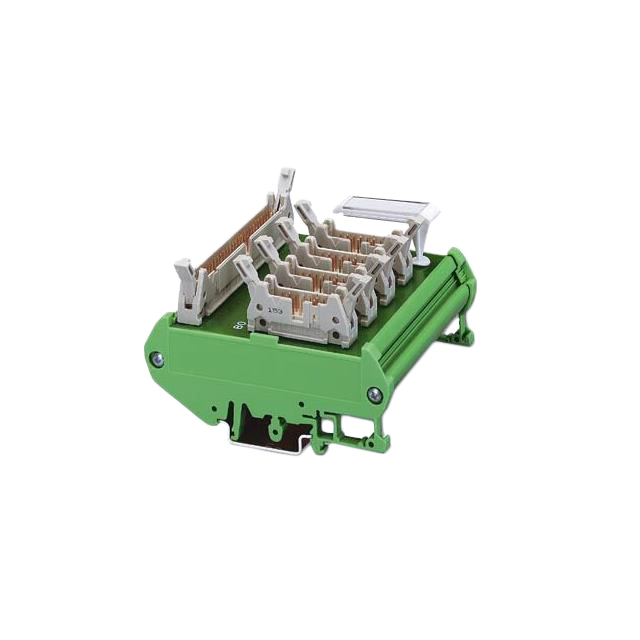

2284594
ActivePhoenix Contact
CONN TERM BLOCK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2284594
ActivePhoenix Contact
CONN TERM BLOCK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2284594 | FLKM Series |
|---|---|---|
| Control Side Cable Retainer | - | Jackscrew Socket |
| Control Side Connection | - | D-Shaped - Telco, D-Sub, Female |
| Convert From (Adapter End) | 4 Rows, 14 Pos | 4 - 14 Rows |
| Convert From (Adapter End) | Rectangular Connector (4) | Rectangular Connector (4) |
| Convert To (Adapter End) | 50 Pos, 2 Rows | 2 - 50 Pos |
| Convert To (Adapter End) | Male Pins, Rectangular Connector | Male Pins, Rectangular Connector |
| Current Rating (Per Contact) | - | 1 - 2.5 A |
| Features | - | Label Holder |
| Length | - | 3.102 - 5.76 in |
| Length | - | 78.79 - 146.3 mm |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature | - | 50 °C |
| Operating Temperature | - | -20 C |
| Positions / Poles | - | 25 - 50 |
| Process Side Connection | - | Terminal Blocks - Screw Connection |
| Voltage - Rated | - | 60 - 125 V |
| Width | - | 3.031 " |
| Width | - | 76.99 mm |
| Wire Gauge | - | 12 AWG |
| Wire Gauge | - | 24 AWG |
FLKM Series
Terminal Block Interface Modules FLKM-D25 SUB/B
| Part | Positions / Poles | Wire Gauge [Min] | Wire Gauge [Max] | Width [x] | Width [x] | Length | Length | Control Side Connection | Process Side Connection | Current Rating (Per Contact) | Voltage - Rated | Features | Operating Temperature [Max] | Operating Temperature [Min] | Control Side Cable Retainer | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 5541234 | 50 | 12 AWG | 24 AWG | 3.031 " | 76.99 mm | 5.76 in | 146.3 mm | D-Shaped - Telco | Terminal Blocks - Screw Connection | 1 A | 60 V | |||||||||
Phoenix Contact 2281209 | 25 | 12 AWG | 24 AWG | 3.031 " | 76.99 mm | 3.102 in | 78.79 mm | D-Sub, Female | Terminal Blocks - Screw Connection | 2.5 A | 125 V | Label Holder | 50 °C | -20 C | Jackscrew Socket | |||||
Phoenix Contact 2284594 | 2 Rows, 50 Pos | Male Pins, Rectangular Connector | 4 Rows, 14 Pos | Rectangular Connector (4) | DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 208.29 | |
Description
General part information
FLKM Series
Terminal Block Interface Modules FLKM-D25 SUB/B
