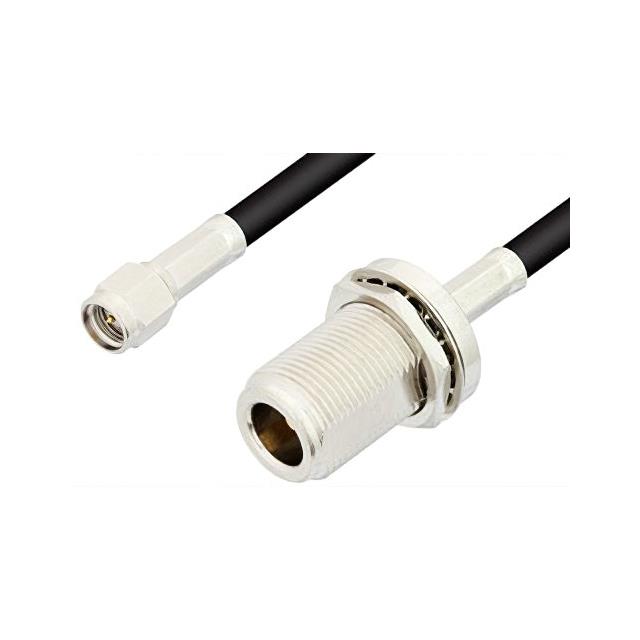

PE3013-72
ActivePasternack
SMA MALE TO N FEMALE BULKHEAD CA
PE3013-72
ActivePasternack
SMA MALE TO N FEMALE BULKHEAD CA
Description
General part information
PE3013-72
Cable Assembly Coaxial SMA to N-Type RG-58 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3013-72 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 72 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
