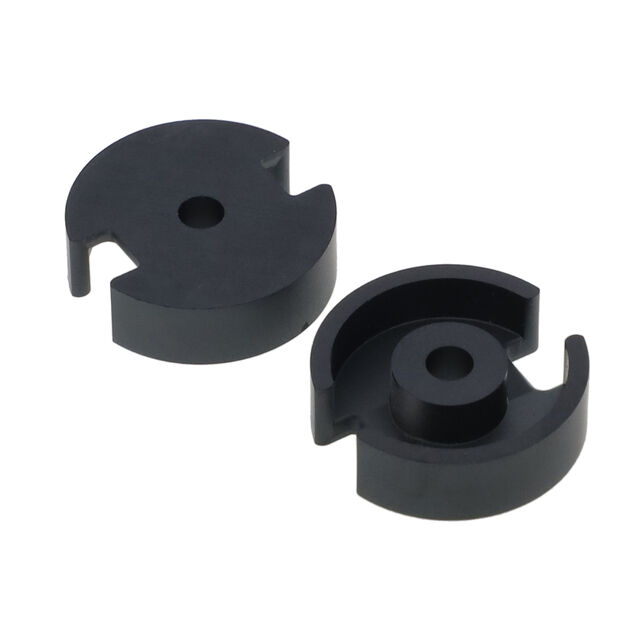

Specification	B65651D0250A048

Core Factor (ΣI/A) mm⁻¹	0.6 mm⁻¹
Core Type	P (Pot Core)
Diameter	0.724 in
Effective Area (Ae)	43 mm²
Effective Length (le)	25.9 mm
Effective Magnetic Volume (Ve)	1114 mm³
Effective Permeability (µe)	120
Finish	Uncoated
Gap	Gapped
Height	0.209 in
Inductance Factor (Al)	250 nH
Material	N48
Package Length	18 mm
Package Name	P
Package Width	11 mm
Tolerance	3 %
