1-1377175-2

Active

TE Connectivity AMP Connectors

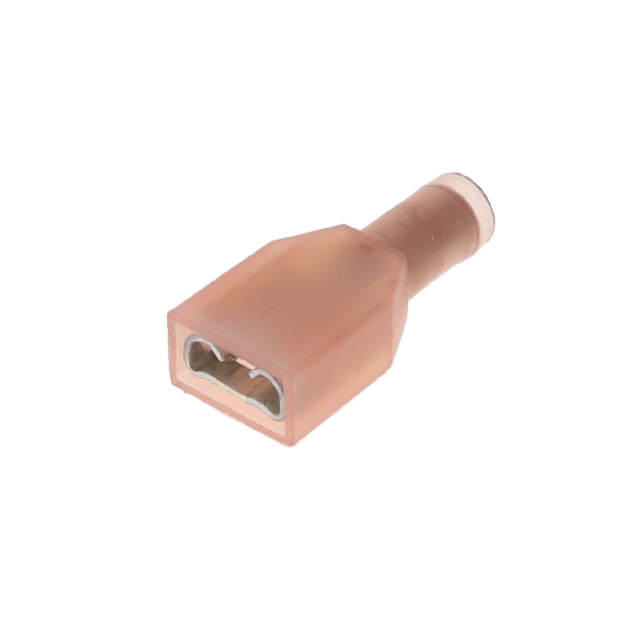

CONN QC RCPT 15.5-17AWG 0.250

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-1377175-2

Active

TE Connectivity AMP Connectors

CONN QC RCPT 15.5-17AWG 0.250

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.14
		10	$ 1.07
		25	$ 1.03
		50	$ 1.02
		100	$ 0.92
		300	$ 0.89
		500	$ 0.81
		1000	$ 0.73

Description

General part information

1377175 Series

0.250" (6.35mm) Quick Connect Female 15.5-17 AWG Crimp Connector Fully Insulated

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1377175-2	1377175 Series

Color	Red	Natural, Red, Blue
Contact Finish	Tin	Tin
Contact Material	Brass	Brass
For Use With/Related Products	-	0.25 in
For Use With/Related Products	-	Quick Connects
For Use With/Related Products	-	6.35 mm
Gender	Female	Tab, Male, Female, Female, Receptacle
Insulation	Fully Insulated	Fully Insulated, Non-Insulated, Non-Mating End Insulated
Insulation Diameter [diameter]	0.134 in	0.134 - 0.157 in
Insulation Diameter [diameter]	3.4 mm	3.4 - 3.99 mm
Length - Overall	-	21.9 mm
Length - Overall [x]	21.59 mm	20.09 - 21.59 mm
Length - Overall [x]	0.85 "	0.791 - 0.862 "
Material	-	Nylon, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	-	1 - 6
Stacking Direction	-	Multiple, Side to Side, Perpendicular, Top to Bottom and Side to Side
Style	-	Housing
Tab Length	-	0.303 in
Tab Length	-	0.25 - 7.7 mm
Tab Length	-	6.35 mm
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	4.75 - 6.35 mm
Tab Width	0.25 in	0.187 - 0.25 in
Terminal Size	-	6.35 mm
Terminal Size	-	0.25 in
Terminal Type	Standard	Disconnect, Quick Connect, Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	17 AWG	12 - 17 AWG
Wire Gauge [Min]	16 AWG	10 - 16 AWG

1377175 Series

CONN MALE TAB HSG 0.25 3POS NAT

Part	Terminal Size	Terminal Size	Stacking Direction	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Gender	Mounting Type	Material	Color	Note	Style	Terminal Type	Number of Positions	Tab Width	Tab Width	Contact Material	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Insulation	Tab Length	Tab Length
TE Connectivity AMP Connectors 4-1377175-6	6.35 mm	0.25 in	Multiple	0.25 in	Quick Connects	6.35 mm	Male, Tab	Free Hanging (In-Line)	Nylon	Natural	Contacts Not Included	Housing	Disconnect, Quick Connect
TE Connectivity AMP Connectors 4-1377175-3	6.35 mm	0.25 in		0.25 in	Quick Connects	6.35 mm	Male, Tab	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Natural	Contacts Not Included	Housing	Disconnect, Quick Connect	1
TE Connectivity AMP Connectors 1-1377175-2							Female	Free Hanging (In-Line)		Red			Standard		6.35 mm	0.25 in	Brass	0.032 in	0.81 mm	21.59 mm	0.85 "	16 AWG	17 AWG	Crimp	Tin	0.134 in	3.4 mm	Fully Insulated
TE Connectivity AMP Connectors 3-1377175-3							Female	Free Hanging (In-Line)					Standard		6.35 mm	0.25 in	Brass	0.032 in	0.81 mm	20.09 mm	0.791 in	10 AWG	12 AWG	Crimp	Tin			Non-Insulated	0.303 in	7.7 mm
TE Connectivity AMP Connectors 1-1377175-5							Female	Free Hanging (In-Line)		Blue			Standard		6.35 mm	0.25 in	Brass	0.032 in	0.81 mm			12 AWG	13 AWG	Crimp	Tin	0.157 in	3.99 mm	Fully Insulated
TE Connectivity AMP Connectors 3-1377175-0			Side to Side					Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Natural	Contacts Not Included	Housing		2
TE Connectivity AMP Connectors 4-1377175-4	6.35 mm	0.25 in	Side to Side	0.25 in	Quick Connects	6.35 mm	Male, Tab	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Natural	Contacts Not Included	Housing	Disconnect, Quick Connect	2
TE Connectivity AMP Connectors 1-1377175-6							Female	Free Hanging (In-Line)		Blue			Standard		6.35 mm	0.25 in	Brass	0.032 in	0.81 mm					Crimp	Tin	0.157 in	3.99 mm	Fully Insulated
TE Connectivity AMP Connectors 2-1377175-9	6.35 mm	0.25 in		0.25 in	Quick Connects	6.35 mm	Female, Receptacle	Free Hanging (In-Line)	Nylon	Natural	Contacts Not Included	Housing	Disconnect, Quick Connect	1
TE Connectivity AMP Connectors 4-1377175-5	6.35 mm	0.25 in	Perpendicular	0.25 in	Quick Connects	6.35 mm	Male, Tab	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Natural	Contacts Not Included	Housing	Disconnect, Quick Connect	2
