1124MPF188B
ActiveKanebridge
MACHINE SCREW - PHILLIPS DRIVE F
1124MPF188B
ActiveKanebridge
MACHINE SCREW - PHILLIPS DRIVE F
Description
General part information
1124MPF188B

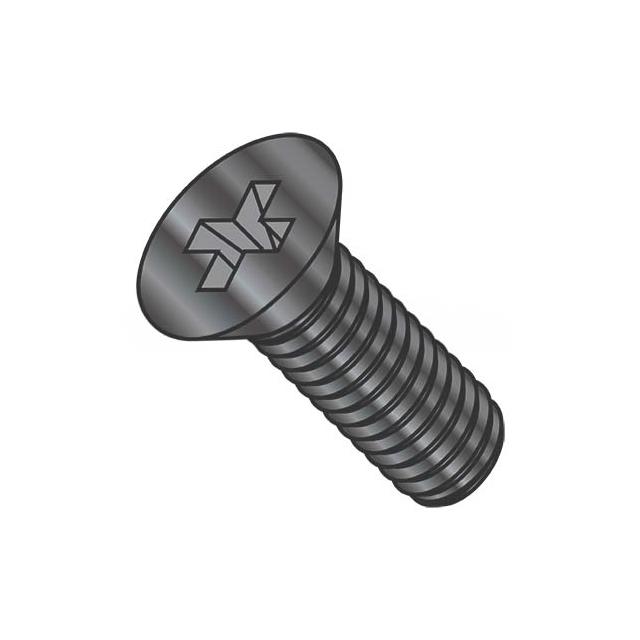

#10-32 Flat Head Machine Screw Phillips Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1124MPF188B |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.348 in |
| Head Height | 0.107 in |
| Length - Below Head | 1.5 in |
| Length - Overall | 1.607 in |
| Material | Stainless Steel |
| Plating | Black Oxide |
| Screw Head Type | Flat Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 10 mm |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
