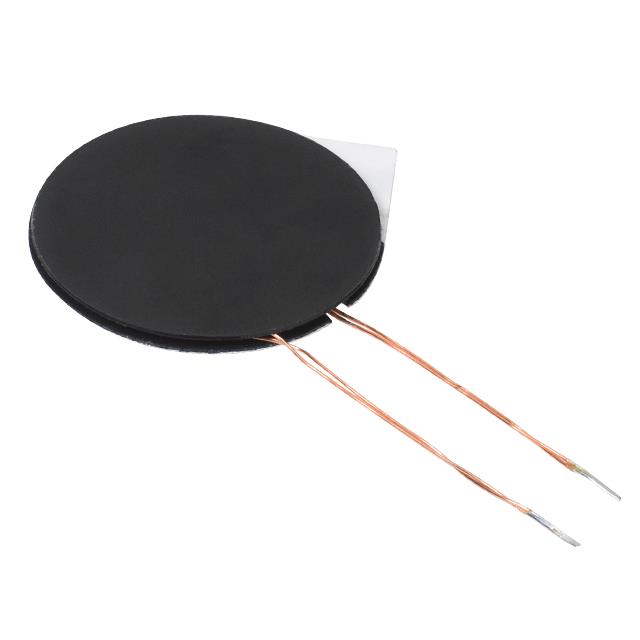

WRSC-47R0K-08
ActiveSignal Transformer
WIRELESS CHARGE COIL 47.0UH 3.0A
WRSC-47R0K-08
ActiveSignal Transformer
WIRELESS CHARGE COIL 47.0UH 3.0A
Description
General part information
WRSC-47R0K-08
1 Coil, 3 Layer 47µH Wireless Charging Coil Transmitter 500mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | WRSC-47R0K-08 |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 500 mOhm |
| Function | Transmitter |
| Inductance | 47 µH |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Q | 25 |
| Size / Dimension Diameter | 1.02 in |
| Size / Dimension Height | 0.05 in |
| Tolerance | 10 % |
| Type | 3 Layer, 1 Coil |
