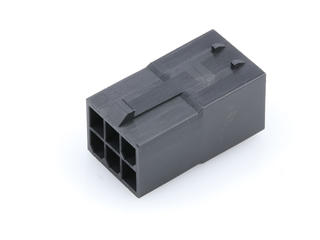

1727621006 - Mini-Fit Sigma Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Glow-Wire Capable, 6 Circuits

1727621006

Active
Molex

MINI-FIT SIGMA PLUG HOUSING, 4.20MM PITCH, DUAL ROW, UL 94V-0, GLOW-WIRE CAPABLE, 6 CIRCUITS

Find alt
1727621006 - Mini-Fit Sigma Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Glow-Wire Capable, 6 Circuits

1727621006

Active
Molex

MINI-FIT SIGMA PLUG HOUSING, 4.20MM PITCH, DUAL ROW, UL 94V-0, GLOW-WIRE CAPABLE, 6 CIRCUITS

Find alt

Description

General part information

172762 Series

Headers & Wire Housings MINIFIT TPA2 DR PLUG HSG V-2 GW 10CKT

Technical Specifications

Parameters and characteristics for this part

Specification1727621006
ColorBlack
Connector TypePlug
Contact TerminationCrimp
Contact TypeMale Pin
Fastening TypeLocking Ramp
FeaturesGlow Wire Compliant
Insulation MaterialNylon, Polyamide (PA)
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions6
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.165 in
Row Spacing0.185 in
