928-4
ActiveAntenna Technologies Limited Company

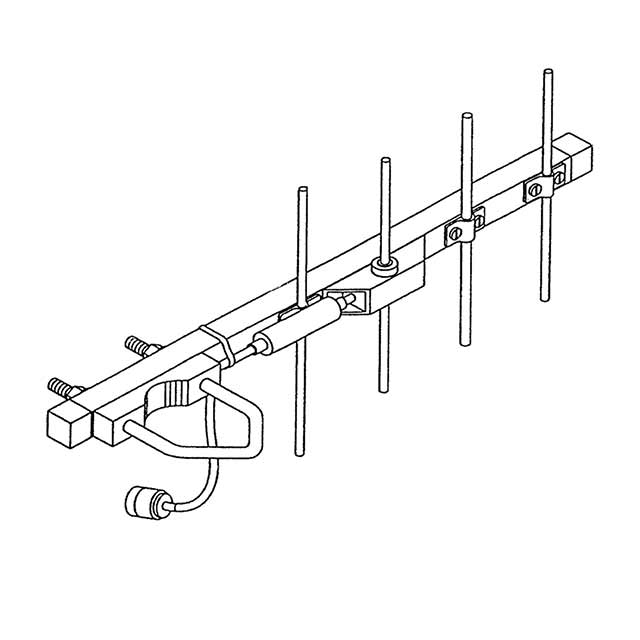

YAGI 928 MHZ ANTENNA
928-4
ActiveAntenna Technologies Limited Company
YAGI 928 MHZ ANTENNA
Description
General part information
928-4
RF ANTENNA Yagi, 4-Element N Type Female Rear Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 928-4 |
|---|---|
| Antenna Element Count | 4 elements |
| Antenna Type | Yagi |
| Features | Cable, 300mm |
| Frequency (Center/Band) | 928 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 896 MHz |
| Gain | 7 dBi |
| Mounting Type | Rear Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| Termination | N Type Female |
| VSWR | 1.2 |
