1-1337638-0

Active

TE Connectivity AMP Connectors

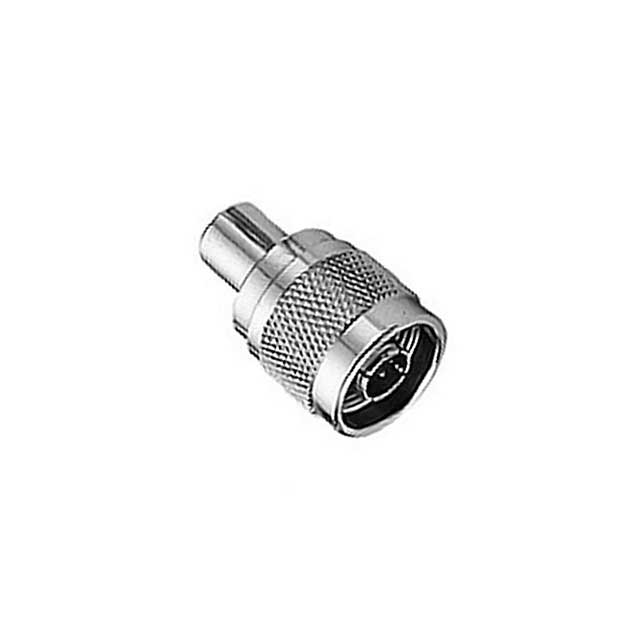

CONN TERMINATOR PLUG N 50OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TERMINATOR PLUG N 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337638-0

Body Finish	Nickel
Body Material	Brass
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

CONN TERMINATOR PLUG N 50OHM

Part	Frequency - Max [Max]	Impedance	Dielectric Material	Body Finish	Connector Type	Connector Style	Mounting Type	Contact Material	Contact Finish	Body Material
TE Connectivity AMP Connectors 1-1337638-0	2 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Nickel	Male Pin, Plug	N Type	Cap, Free Hanging	Brass	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminator Coax Connector Plug, Male Pin N Type 50 Ohms

Technical documentation and resources
