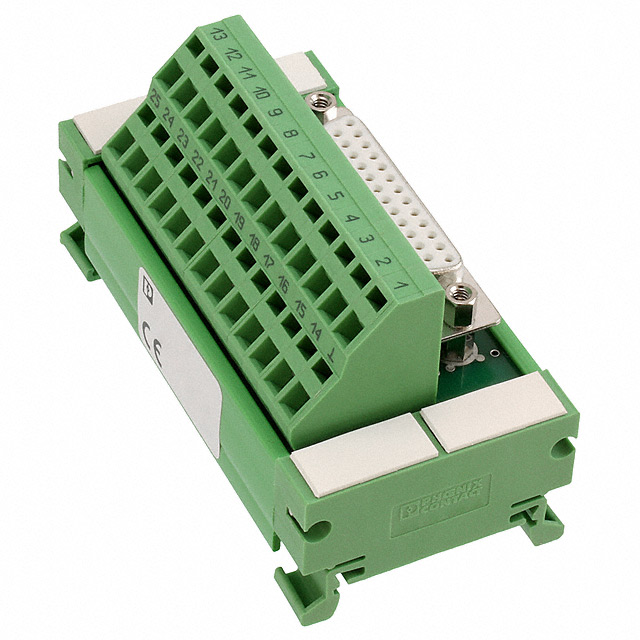

Specification	2293682

Control Side Cable Retainer Type	Jackscrew Socket
Control Side Connection Gender	Female
Control Side Connection Shape	D-Sub
Current Rating (Per Contact)	2.5 A
Length	3.543 in
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Positions / Poles	25
Process Side Connection	Terminal Blocks, Spring Connection
Voltage - Rated	125 VAC
Width	1.772 in
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	14 AWG
