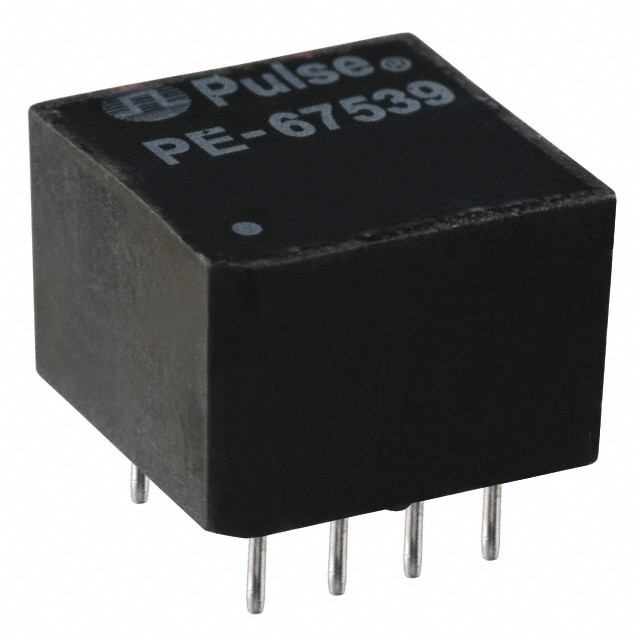

PE-67539NL
ObsoletePulse Electronics
CMC 4LN TH
PE-67539NL
ObsoletePulse Electronics
CMC 4LN TH
Description
General part information
PE-67539NL
4 Line Common Mode Choke Through Hole DCR 600mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-67539NL |
|---|---|
| DC Resistance (DCR) (Max) | 600 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.375 in |
| Mounting Type | Through Hole |
| Number of Lines | 4 |
| Package / Case | Vertical |
| Package Leads | 8 PC Pin |
| Package Name | Vertical |
| Pad Count | 8 PC Pin |
| Pin Count | 8 |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.5 in |
