FMANKIT1008
ActiveFairview Microwave

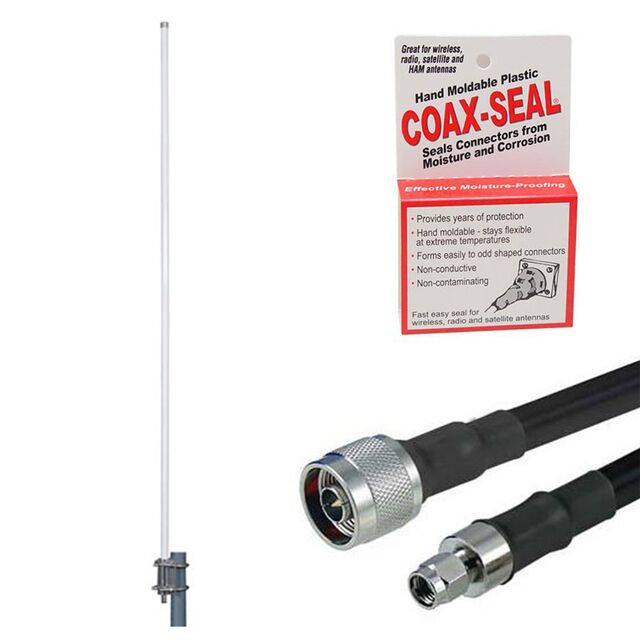

ANTENNA KIT 8 DBI 6 FT LOW LOSS
FMANKIT1008
ActiveFairview Microwave
ANTENNA KIT 8 DBI 6 FT LOW LOSS
Description
General part information
FMANKIT1008
RF ANTENNA IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANKIT1008 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | M2M, IoT, LPWAN, LoRa, LoRaWAN, ISM |
| Features | 1.8288m, Cable |
| Frequency (Center/Band) | 914 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 928 MHz |
| Frequency Range (Min) | 900 MHz |
| Gain | 8 dBi |
| Height (Max) | 57.3 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
| VSWR | 1.6 |
