Description
General part information

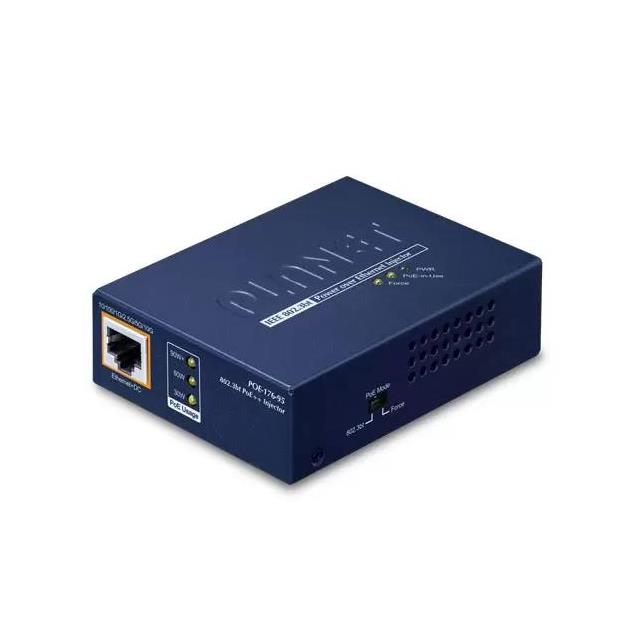

POE-176-95
54V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000/5000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-176-95 |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3af, IEEE802.3bt, IEEE802.3at |
| Current - Output | 1.75 A |
| Data Rate | 1000 Mbps, 100 Mbps, 5000 Mbps, 10 Mbps |
| Data Rate | 1000 Mbps, 100 Mbps, 10 Mbps, 5 Gbps |
| Input Connector | IEC 320-C8 (Power), RJ45 (Data) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Wall Mount |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 95 W |
| Size / Dimension Height | 1.03 in |
| Size / Dimension Length | 3.7 in |
| Size / Dimension Width | 2.77 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (Maximum) | 56 V |
| Voltage - Input (Minimum) | 52 V |
| Voltage - Output | 54 V |
