PAG.M1.0GL.AZGK

Active

LEMO

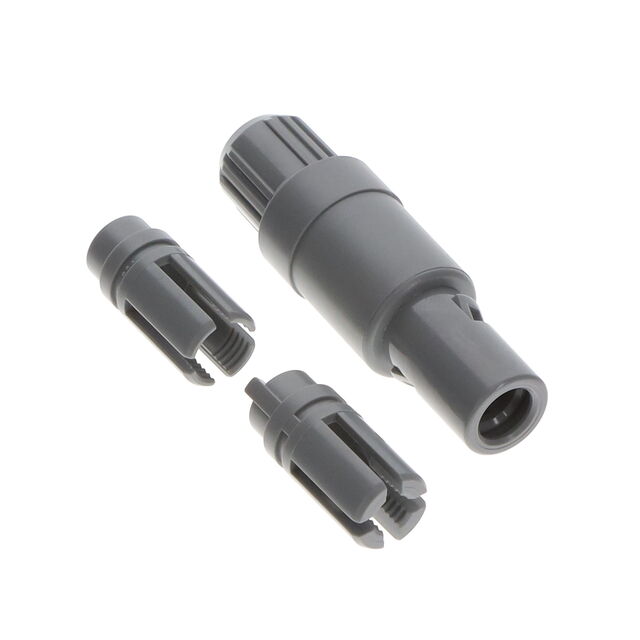

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAG.M1.0GL.AZGK

Active

LEMO

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.55
		10	$ 23.25
		25	$ 22.25
		50	$ 21.53
		100	$ 20.81
		250	$ 19.66
		500	$ 19.09

Description

General part information

PAG.M1 Series

10 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAG.M1.0GL.AZGK	PAG.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.209 - 0.259 in
Cable Opening	-	5.3 - 6.5 mm
Color	Gray	Gray, Yellow, Black, Red, Blue
Connector Type	Plug, Male Pins	Plug, Male Pins, Insert
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10 - 14
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M10	M10, M14
Shielding	Unshielded	Unshielded

PAG.M1 Series

CONN PLUG MALE 10P GOLD SLDR CUP

Part	Connector Type	Shielding	Orientation	Number of Positions	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Shell Size - Insert	Features	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Primary Material	Shell Material	Color	Applications	Contact Finish - Mating	Fastening Type	Insert Material	Current Rating (Amps)	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
LEMO PAG.M1.0GL.AC39Z	Male Pins, Plug	Unshielded	G	10	Free Hanging (In-Line)	2.7 mm	0.154 in	3.9 mm	0.106 in	M10	Backshell	150 °C	-50 °C	Polysulfone (PSU)	Plastic	Polysulfone (PSU)	Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	3 A	IP50
LEMO PAG.M1.4ZL.A	Insert, Male Pins	Unshielded	G	14						M14	Insert Only, Requires Shell							Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold		Polyetheretherketone (PEEK)	2 A	IP50
LEMO PAG.M1.4GL.AC39G	Male Pins, Plug	Unshielded	G	14	Free Hanging (In-Line)	2.7 mm	0.154 in	3.9 mm	0.106 in	M14	Backshell	150 °C	-50 °C	Polysulfone (PSU)	Plastic	Polysulfone (PSU)	Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	2 A	IP50
LEMO PAG.M1.4GL.AC39J	Male Pins, Plug	Unshielded	G	14	Free Hanging (In-Line)	2.7 mm	0.154 in	3.9 mm	0.106 in	M14	Backshell	150 °C	-50 °C	Polysulfone (PSU)	Plastic	Polysulfone (PSU)	Gray, Yellow	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	2 A	IP50
LEMO PAG.M1.0GL.AC52GZ	Male Pins, Plug	Unshielded	G	10	Free Hanging (In-Line)					M10	Backshell	150 °C	-50 °C	Polysulfone (PSU)	Plastic	Polysulfone (PSU)	Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	3 A	IP50	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M1.4SL.AC52GZ	Male Pins, Plug	Unshielded	G	14	Free Hanging (In-Line)					M14	Backshell	170 °C	-50 °C	Polyetherimide (PEI)	Plastic	Polyetherimide (PEI)	Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	2 A	IP50	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M1.0TL.AC65Z	Male Pins, Plug	Unshielded	G	10	Free Hanging (In-Line)					M10	Backshell	170 °C	-50 °C	Polyetherimide (PEI)	Plastic	Polyetherimide (PEI)	Black	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	3 A	IP50					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAG.M1.4GL.AC65G	Male Pins, Plug	Unshielded	G	14	Free Hanging (In-Line)					M14	Backshell	150 °C	-50 °C	Polysulfone (PSU)	Plastic	Polysulfone (PSU)	Gray	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	2 A	IP50					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAG.M1.4GL.AC52R	Male Pins, Plug	Unshielded	G	14	Free Hanging (In-Line)					M14	Backshell	150 °C	-50 °C	Polysulfone (PSU)	Plastic	Polysulfone (PSU)	Gray, Red	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	2 A	IP50	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M1.4TL.AC65NZ	Male Pins, Plug	Unshielded	G	14	Free Hanging (In-Line)					M14	Backshell	170 °C	-50 °C	Polyetherimide (PEI)	Plastic	Polyetherimide (PEI)	Black	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	2 A	IP50					0.209 in, 0.256 in	5.3 mm, 6.5 mm
