SW19STL235
ActiveLinrose Electronics, Inc.
SWITCH PB SOLDER TAG ALT ACT RIN
SW19STL235
ActiveLinrose Electronics, Inc.
SWITCH PB SOLDER TAG ALT ACT RIN
Description
General part information
SW19STL235

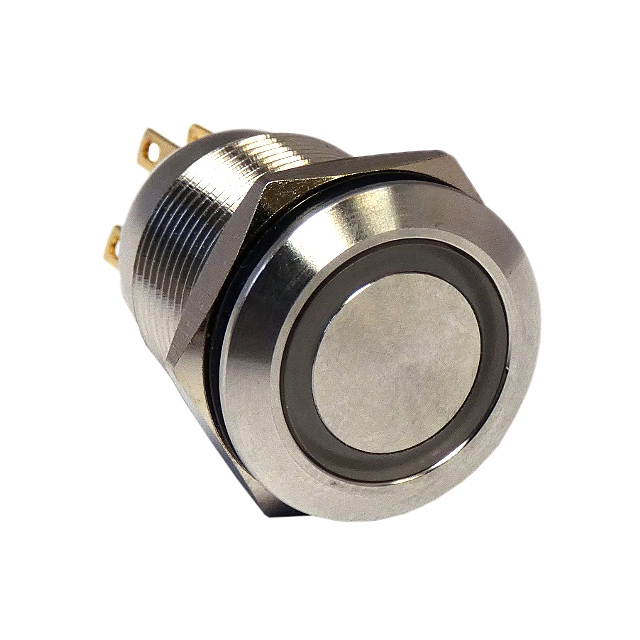

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | SW19STL235 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Flush, Button |
| Circuit | DPST-NO/NC |
| Color | Yellow |
| Color - Actuator/Cap | Silver |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 50000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 110 VAC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 19 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
