000-4700-51

Active

AMPHENOL RF

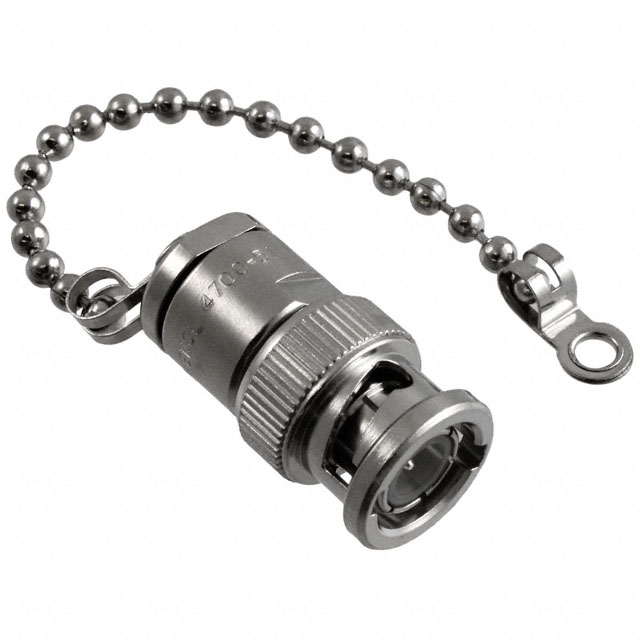

CONN TERMINATOR PLUG BNC 51OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN TERMINATOR PLUG BNC 51OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-4700-51	000-47 Series

Adapter Series	-	BNC to BNC
Adapter Type	-	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Silver
Center Gender	-	Female to Female
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Finish	Silver	Silver
Contact Material	Brass	Brass
Conversion Type	-	Same Series
Convert From (Adapter End)	-	BNC Jack, Female Socket
Convert To (Adapter End)	-	Female Socket, BNC Jack
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Features	Chain	Chain
Frequency - Max	-	4 GHz
Impedance	51 Ohms	50 - 51 Ohms
Mating Cycles	-	500
Mounting Feature	-	Flange
Mounting Type	Free Hanging, Cap	Free Hanging, Cap
Style	-	Straight

UG-414A/U BNC JACK TO BNC JACK ADAPTER 50 OHM STRAIGHT 4-HOLE FLANGE

Part	Frequency - Max [Max]	Mounting Feature	Convert To (Adapter End)	Center Contact Plating	Fastening Type	Style	Adapter Series	Center Gender	Conversion Type	Impedance	Mating Cycles	Convert From (Adapter End)	Body Material	Dielectric Material	Center Contact Material	Adapter Type	Body Finish	Features	Connector Type	Contact Finish	Contact Material	Connector Style	Mounting Type
AMPHENOL RF 000-47025	4 GHz	Flange	BNC Jack, Female Socket	Silver	Bayonet Lock	Straight	BNC to BNC	Female to Female	Same Series	50 Ohms	500	BNC Jack, Female Socket	Brass	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Jack to Jack	Nickel
AMPHENOL RF 000-4700-51										51 Ohms			Brass				Nickel	Chain	Male Pin, Plug	Silver	Brass	BNC	Cap, Free Hanging

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 33.63

General part information

Terminator Coax Connector Plug, Male Pin BNC 51 Ohms

Technical documentation and resources

No documents available
