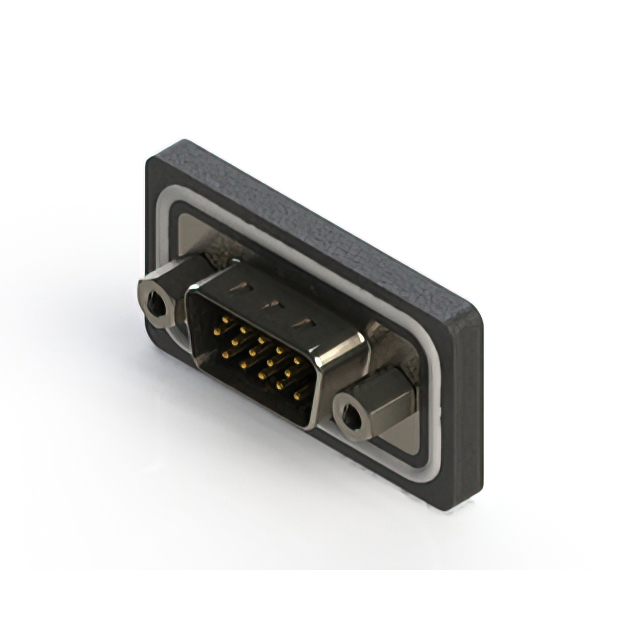

637-W15-221-012

Active

EDAC Inc.

CONN D-SUB HD PLUG 15POS PNL MNT

Search across all available documentation for this part.

Active

EDAC Inc.

CONN D-SUB HD PLUG 15POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	637-W15-221-012

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Dielectric Material	Flange Feature	Contact Finish	Ingress Protection	Number of Positions	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material, Finish	Contact Material	Mounting Type	Connector Style	Connector Type	Contact Type	Contact Finish Thickness
EDAC Inc. 637-W15-621-012	0.76 Ám	30 Áin	3	UL94 V-0	DE E	1	High Density	Grounding Indents Shielded	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Gold	IP67 - Dust Tight Waterproof	15	3 A	Solder	-25 °C	85 °C	Black	Nickel Plated Steel	Copper Alloy	Through Hole	D-Sub High Density	Male Pins Plug	Signal
EDAC Inc. 637-W15-221-012			3	UL94 V-0	DE E	1	High Density		Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	Gold	IP67 - Dust Tight Waterproof	15	3 A	Solder	-25 °C	85 °C	Black	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	D-Sub High Density	Male Pins Plug	Signal	Flash
EDAC Inc. 637-W15-622-012	0.76 Ám	30 Áin	3	UL94 V-0	DE E	1	High Density	Grounding Indents Shielded	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Gold	IP67 - Dust Tight Waterproof	15	3 A		-25 °C	85 °C	Black	Nickel Plated Steel	Copper Alloy	Free Hanging (In-Line)	D-Sub High Density	Male Pins Plug	Signal
