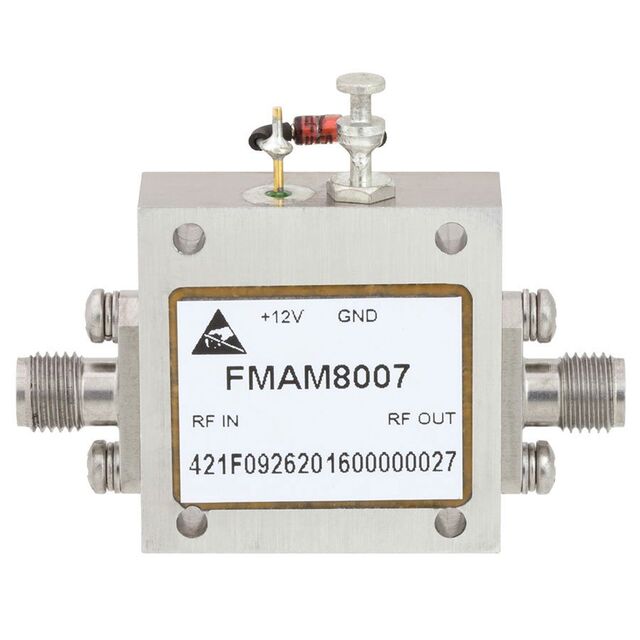

FMAM8007
ActiveFairview Microwave
GAIN BLOCK AMP SMA 6GHZ-18GHZ 17
FMAM8007
ActiveFairview Microwave
GAIN BLOCK AMP SMA 6GHZ-18GHZ 17
Description
General part information
FMAM8007
RF Amplifier IC General Purpose 6GHz ~ 18GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM8007 |
|---|---|
| Current - Supply | 160 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 6 GHz |
| Gain | 17 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 4.5 dB |
| P1dB | 20 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 11 VDC |
