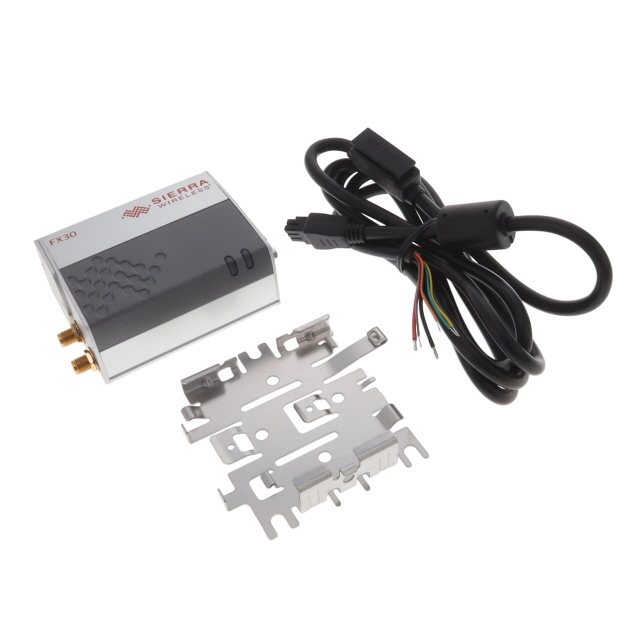

1104542

Active

Sierra Wireless

GATEWAY IOT PROGR WORLDWIDE

Search across all available documentation for this part.

Active

Sierra Wireless

GATEWAY IOT PROGR WORLDWIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1104542	FX30S Series

Applications	General Purpose	General Purpose
Data Rate (Max)	-	110 Mbps
Data Rate (Max)	-	57 Mbps
Features	Legato, Linux, Programmable	Legato, Linux, Programmable
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz	850 - 1900 MHz
Function	Gateway	Gateway
Interface	DB9, Digital, Analog, RS-232, RS-485	RS-232, RS-485, USB, UART, Serial, Analog, DB9, Digital
Modulation or Protocol	EDGE, GSM, Cellular, LTE, GPRS	Cellular, GPRS, GSM, HSPA+, EDGE, LTE
Voltage - Supply [Max]	32 VDC	32 VDC
Voltage - Supply [Min]	4.75 V	4.75 V

GATEWAY EDGE GPRS GSM HSPA+

Part	Frequency	Features	Modulation or Protocol	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Interface	Data Rate (Max) [Max]	Data Rate (Max)
Sierra Wireless FX30S_1103232	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, HSPA+	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485, Serial, UART, USB
Sierra Wireless FX30S-LTEM1_1104087	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, LTE	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485, Serial, UART, USB	110 Mbps
Sierra Wireless 1104542	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, LTE	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485
Sierra Wireless FX30S_1104541	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Legato, Linux, Programmable	Cellular, EDGE, GPRS, GSM, HSPA+	Gateway	4.75 V	32 VDC	General Purpose	Analog, DB9, Digital, RS-232, RS-485, Serial, UART, USB		57 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LTE Cat M/2G (GSM, GPRS) Cellular, EDGE, GPRS, GSM, LTE Gateway AT&T, Verizon Analog, Digital, RS-232, RS-485, DB9

Technical documentation and resources

No documents available
