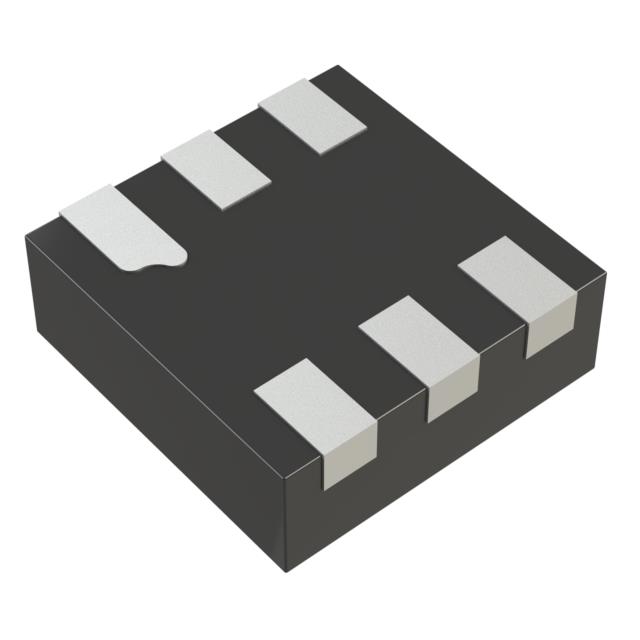

ISL9021IRUPZ-T

Obsolete

Renesas Electronics Corporation

250MA SINGLE LDO WITH LOW IQ, LOW NOISE AND HIGH PSRR LDO

Find alt

Alpha

ISL9021IRUPZ-T

Obsolete

Renesas Electronics Corporation

250MA SINGLE LDO WITH LOW IQ, LOW NOISE AND HIGH PSRR LDO

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

ISL9021 Series

The ISL9021A is a single LDO, which provides high performance, low input voltage and high PSRR. It delivers guaranteed continuous 250mA load current and is stable with 1µF to 4. 7µF of output capacitance (±30%) with an ESR range of 5mΩ to 400mΩ. The input voltage range for the ISL9021A is between 1. 5V to 5. 5V and the output voltage comes in many fixed voltage options with ±1. 8% accuracy over-temperature, line and load ranges. The ISL9021A has typical PSRR of 75dB @ 10kHz and 50dB @ 1MHz. The reverse current protection feature prevents current from flowing back to the power source when the output voltage is pulled higher than the input. The ISL9021A is offered in tiny 4-bump 0. 975mmx1. 155mm WLCSP and 1. 6mmx1. 6mm 6 Ld µTDFN packages.

Technical Specifications

Parameters and characteristics for this part

Specification	ISL9021IRUPZ-T

Control Features	Enable
Current - Output	250 mA
Current - Quiescent (Iq)	50 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package / Case	6-UFDFN
Package Length	1.6 mm
Package Name	6-UTDFN
Package Width	1.6 mm
Protection Features	Over Current, Short Circuit, Reverse Polarity, Soft Start, Over Temperature
Voltage - Input (Max)	5.5 V
Voltage - Output (Min/Fixed)	1.85 V
Voltage Dropout (Max)	0.25 V

ISL9021 Series

250mA Single LDO with Low IQ, Low Noise and High PSRR LDO

Part	Current - Output	Voltage - Input (Max)	Package Length	Package Name	Package Width	Voltage - Output (Min/Fixed)	Mounting Type	Output Configuration	Operating Temperature (Min)	Operating Temperature (Max)	Protection Features	Package / Case	Number of Regulators	Output Type	Control Features	Current - Quiescent (Iq)	Voltage Dropout (Max)
Renesas Electronics Corporation ISL9021AIRUCZ-T7A	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	1.8 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA
Renesas Electronics Corporation ISL9021AIRUCZ-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	1.8 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA
Renesas Electronics Corporation ISL9021AIRUFZ-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	2.5 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA	0.25 V
Renesas Electronics Corporation ISL9021AIIFZ-T	250 mA	5.5 V	1.16 mm	4-WLCSP	0.98 mm	2.5 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	4-UFBGA WLCSP	1	Fixed	Enable	50 µA	0.25 V
Renesas Electronics Corporation ISL9021IRUBZ-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	1.5 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA
Renesas Electronics Corporation ISL9021AIRUMZ-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	3 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA	0.25 V
Renesas Electronics Corporation ISL9021IRURZ-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	2.6 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA	0.25 V
Renesas Electronics Corporation ISL9021IRUKZ-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	2.85 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA	0.25 V
Renesas Electronics Corporation ISL9021IRU3Z-T	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	1.3 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA
Renesas Electronics Corporation ISL9021AIRUMZ-T7A	250 mA	5.5 V	1.6 mm	6-UTDFN	1.6 mm	3 V	Surface Mount	Positive	-40 °C	85 °C	Over Current Over Temperature Reverse Polarity Short Circuit Soft Start	6-UFDFN	1	Fixed	Enable	50 µA	0.25 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ISL9021IRUPZ-T | Datasheet

ISL9021 Datasheet
