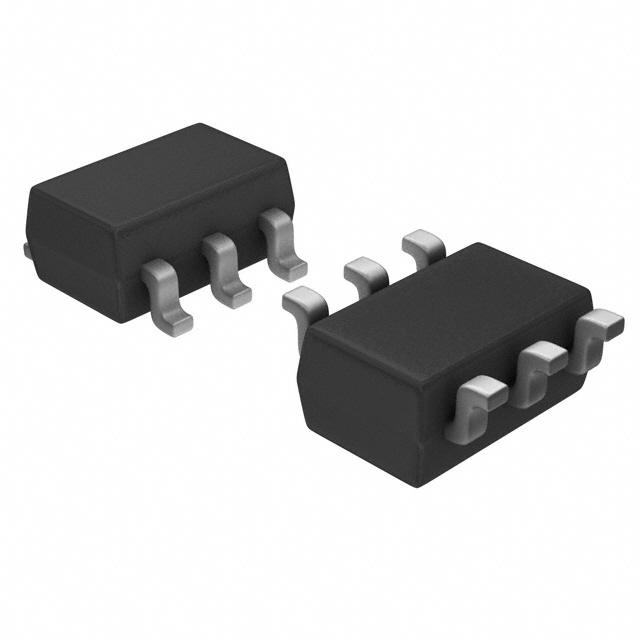

ACDST6-4448TI-G

Active

Comchip Technology

DIODE ARRAY GP 75V 100MA SOT23-6

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARRAY GP 75V 100MA SOT23-6

Technical Specifications

Parameters and characteristics for this part

Specification	ACDST6-4448TI-G

Current - Average Rectified (Io) (per Diode)	100 mA
Current - Reverse Leakage @ Vr	25 nA
Diode Configuration	3 Independent
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOT-23-6
Qualification	AEC-Q101
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23-6
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE ARRAY GP 75V 100MA SOT23-6

Part	Current - Reverse Leakage @ Vr	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Package / Case	Voltage - Forward (Vf) (Max) @ If	Grade	Diode Configuration	Qualification
Comchip Technology ACDST6-4448TI-G	25 nA	Any Speed	200 mA	150 °C	-55 °C	100 mA	SOT-23-6	Surface Mount	Standard	75 V	4 ns	SOT-23-6	1 V	Automotive	3 Independent	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 3 Independent 75 V 100mA Surface Mount SOT-23-6
