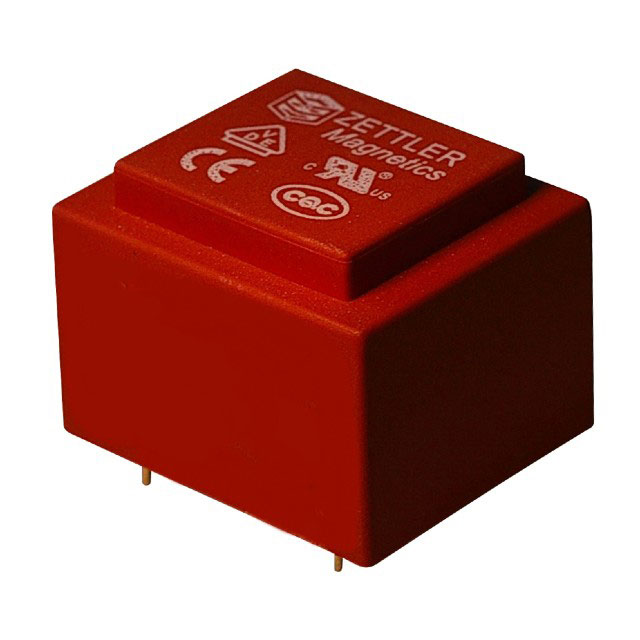

BV302S12020-ZU
ActiveZettler Magnetics
PWR XFMR LAMINATED 2VA TH
BV302S12020-ZU
ActiveZettler Magnetics
PWR XFMR LAMINATED 2VA TH
Description
General part information
BV302S12020-ZU
PWR XFMR LAMINATED 2VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | BV302S12020-ZU |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 167 mA |
| Height - Seated (Max) | 27.4 mm |
| Mounting Type | Through Hole |
| Power - Max | 2 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 32.8 mm |
| Size / Dimension Width | 27.8 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4200 VDC |
| Voltage - Primary | 230 V |
| Voltage - Secondary (Full Load) | 12 V |
