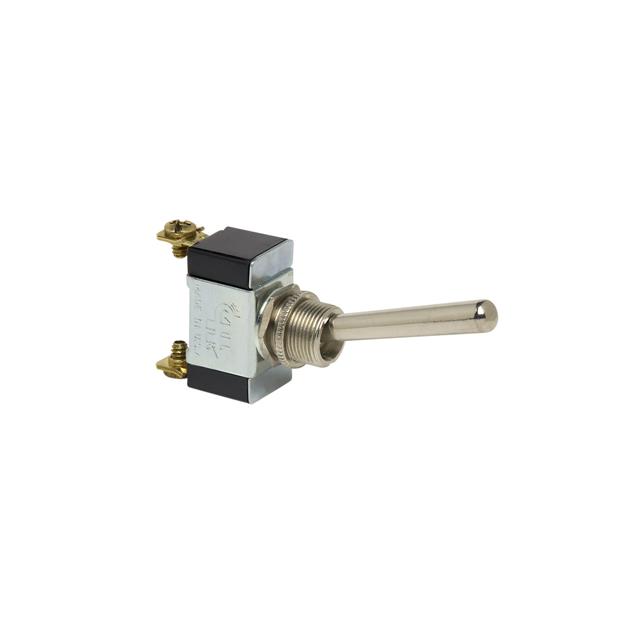

55055-01

Active

Cole Hersee

SWITCH TOGGLE SPST 15A 24V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE SPST 15A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	55055-01

Actuator Length [x]	38.48 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	15 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	24 V

SWITCH TOGGLE SPST 15A 24V

Part	Circuit	Illumination	Switch Function	Actuator Type	Actuator Length [x]	Termination Style	Actuator Material	Bushing Thread	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
Cole Hersee 55055-01	SPST	Non-Illuminated	On-Off	Standard Round	38.48 mm	Screw Terminal	Brass, Nickel Plated	15/32-32	15 A	11.9 mm	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
