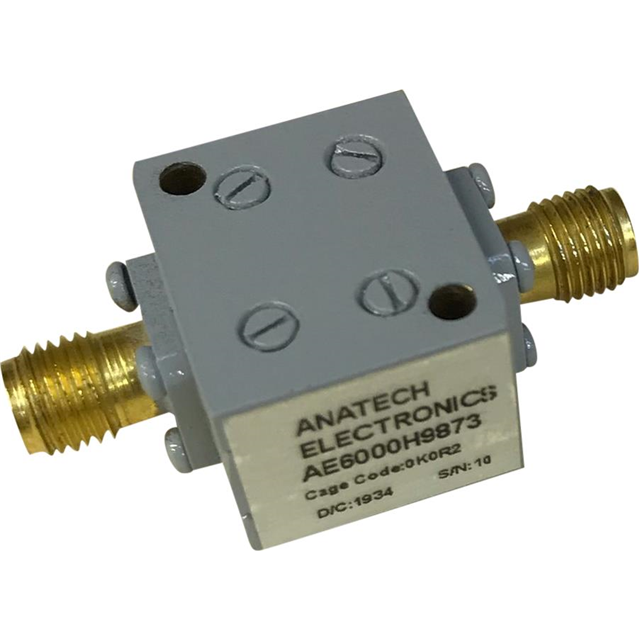

AE6000H9761
ActiveAnatech Electronics Inc.
RF FILTER HIGH PASS 6GHZ MODULE
AE6000H9761
ActiveAnatech Electronics Inc.
RF FILTER HIGH PASS 6GHZ MODULE
Description
General part information
AE6000H9761
6GHz (Cutoff) Frequency High Pass RF Filter (Radio Frequency) 12GHz Bandwidth 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AE6000H9761 |
|---|---|
| Bandwidth | 12 GHz |
| Filter Type | High Pass |
| Frequency | 6 GHz |
| Height (Max) | 12.7 mm |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Ripple (dB) | 0.1 dB |
| Size / Dimension Length | 0.75 in |
| Size / Dimension Width | 0.625 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
