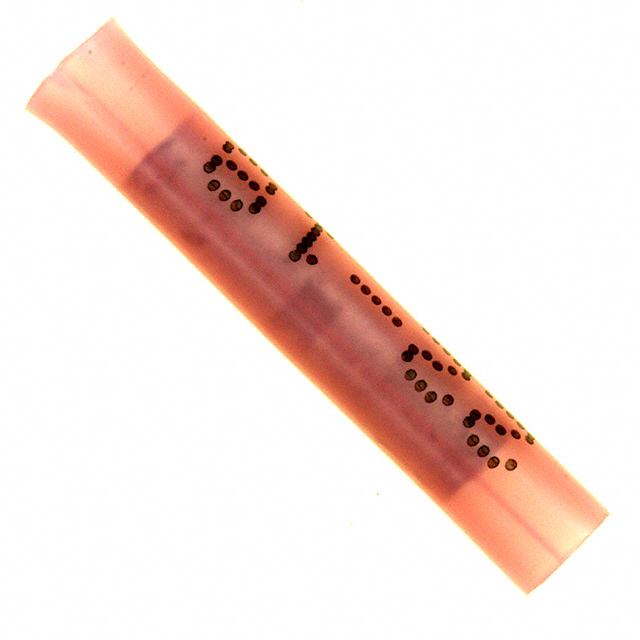

Specification	0192020013

Color	Red
Features	Brazed Seam
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Inline, Individual Openings, Butt Splice
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

019202 Series

Part	Color	Termination	Terminal Type	Number of Wire Entries	Insulation	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Wire Gauge
Molex 0192020039	Yellow	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	12 AWG	10 AWG
Molex 0192020056	Yellow	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated			4 AWG
Molex 0192020020	Blue	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	16 AWG	14 AWG
Molex 0192020010	Red	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	22 AWG	18 AWG
Molex 0192020035	Blue	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	16 AWG	14 AWG
Molex 0192020019	Blue	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	16 AWG	14 AWG
Molex 0192020055	Blue	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated			6 AWG
Molex 0192020026	Blue	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	16 AWG	14 AWG
Molex 0192020136
Molex 0192020027	Blue	Crimp	Butt Splice Individual Openings Inline	2	Fully Insulated	16 AWG	14 AWG
