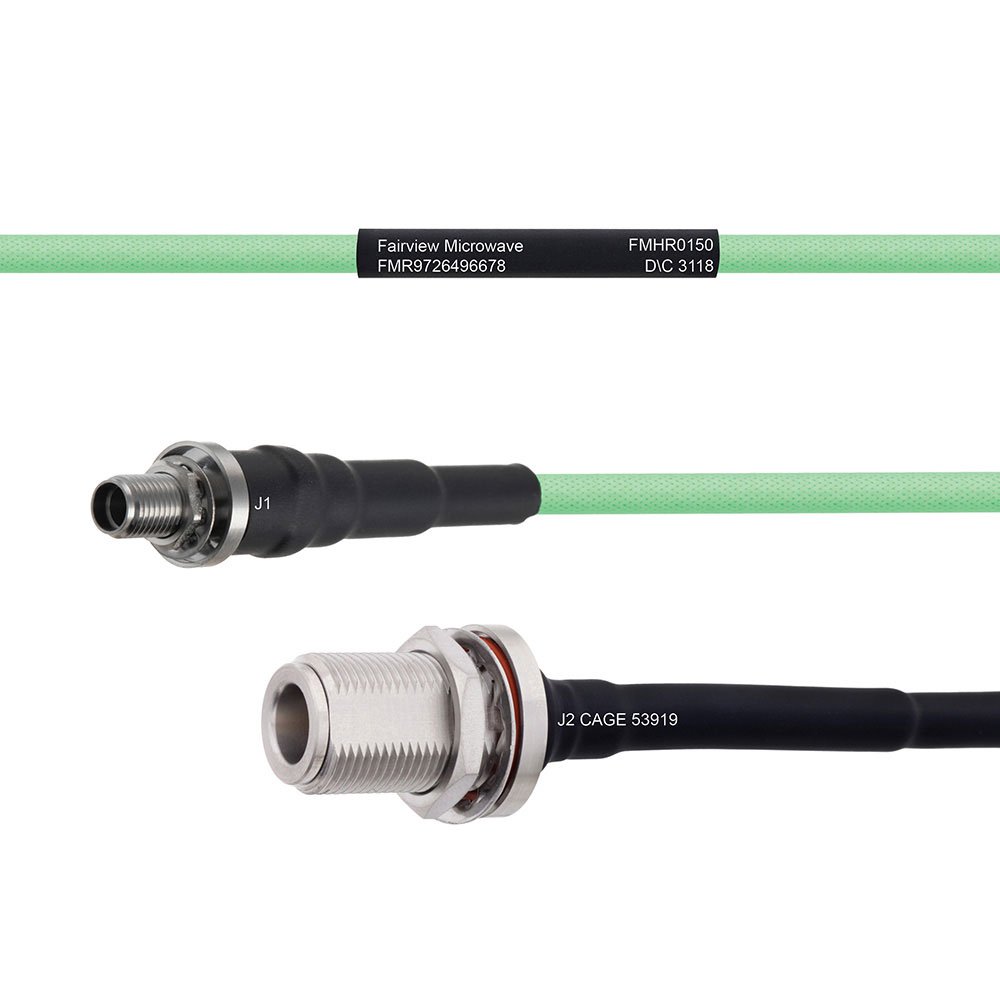

FMHR0150-48
ActiveFairview Microwave
CBL ASSY SMAJACK-TYPE NJACK 48
FMHR0150-48
ActiveFairview Microwave
CBL ASSY SMAJACK-TYPE NJACK 48
Description
General part information
FMHR0150-48
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0150-48 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
