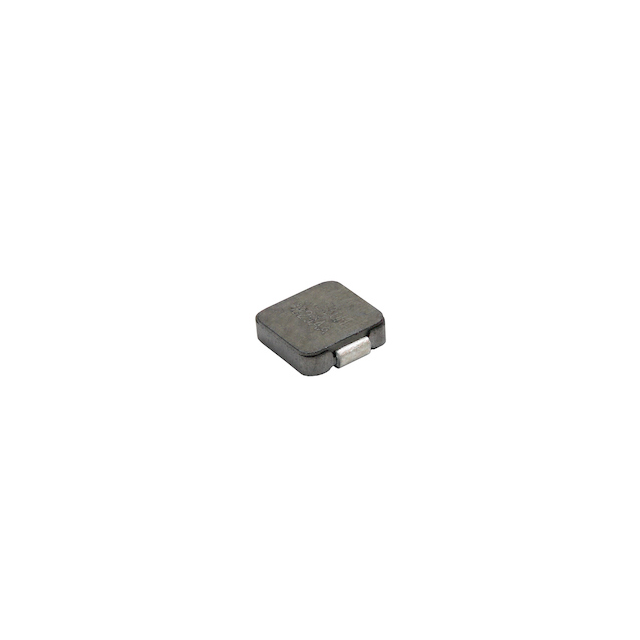

IHSR1616ABER68NM01
ActiveVishay Dale
FIXED IND 68NH 22A 3.2 MOHM SMD
IHSR1616ABER68NM01
ActiveVishay Dale
FIXED IND 68NH 22A 3.2 MOHM SMD
Description
General part information
IHSR1616ABER68NM01
68 nH Shielded Inductor 22 A 3.2mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHSR1616ABER68NM01 |
|---|---|
| Current - Saturation (Isat) | 30 A |
| Current Rating | 22 A |
| DC Resistance (DCR) | 3.2 mOhm |
| Frequency - Self Resonant | 418 MHz |
| Height - Seated (Max) | 0.047 in |
| Inductance | 68 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.18 in |
| Size / Dimension Width | 0.16 in |
| Tolerance | 20 % |
