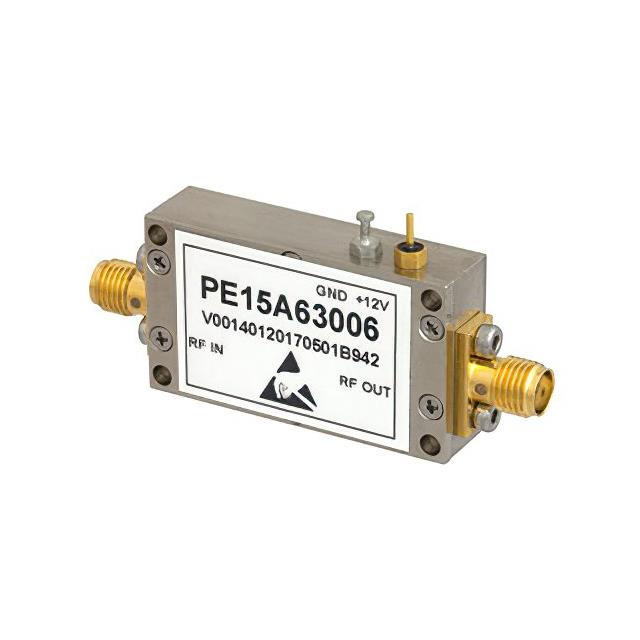

PE15A63006
ActivePasternack
1.2 DB NF INPUT PROTECTED LOW NO
PE15A63006
ActivePasternack
1.2 DB NF INPUT PROTECTED LOW NO
Description
General part information
PE15A63006
RF Amplifier IC Radar 1GHz ~ 1.4GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A63006 |
|---|---|
| Current - Supply | 110 mA |
| Frequency (Max) | 1.4 GHz |
| Frequency (Min) | 1 GHz |
| Gain | 30 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 1.2 dB |
| P1dB | 10 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply | 12 VDC |
