YP77K50300S102
ActiveNextGen Components
77.503KHZ CRYSTAL 20PPM 12.5PF
YP77K50300S102
ActiveNextGen Components
77.503KHZ CRYSTAL 20PPM 12.5PF
Description
General part information
YP77K50300S102

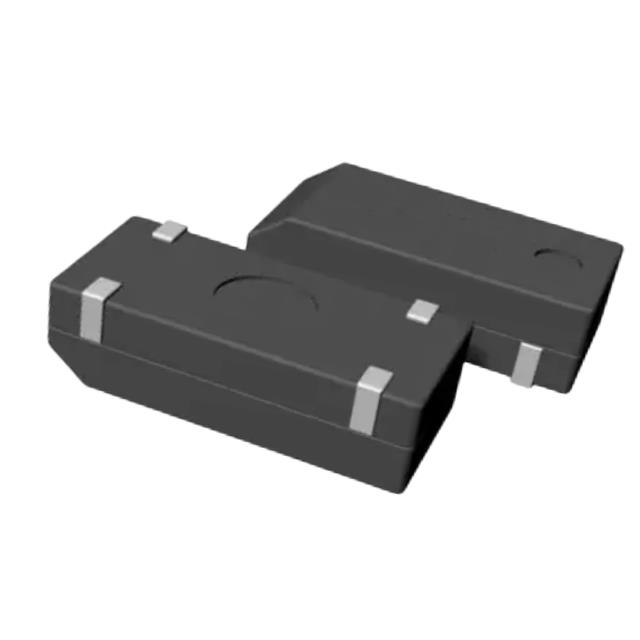

77.503 kHz ±20ppm Crystal 12.5pF 4-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | YP77K50300S102 |
|---|---|
| Frequency | 77.503 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.098 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.15 in |
