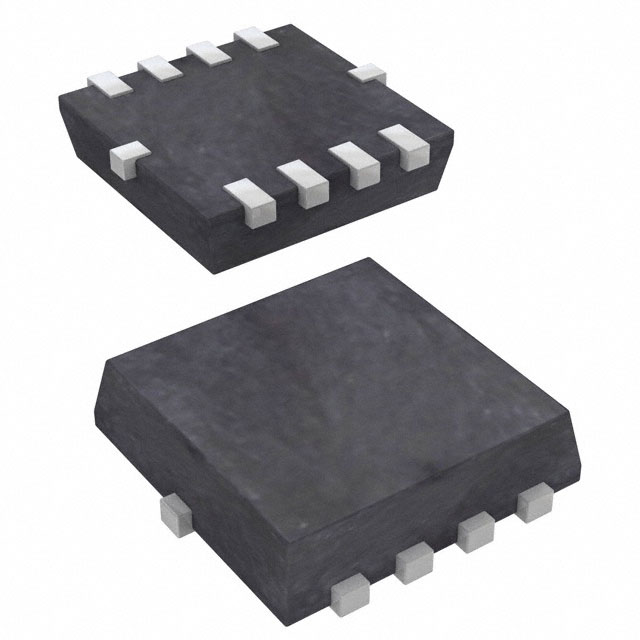

DMC6070LND-7

Active

Diodes Inc

COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

DMC6070LND-7

Active

Diodes Inc

COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMC6070LND-7

Configuration	N and P-Channel
Current - Continuous Drain (Id) @ 25°C	2.4 A, 3.1 A
Drain to Source Voltage (Vdss)	60 V
Gate Charge (Qg) (Max) @ Vgs [Max]	11.5 nC
Input Capacitance (Ciss) (Max) @ Vds	731 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power - Max [Max]	1.4 W
Rds On (Max) @ Id, Vgs	85 mOhm
Supplier Device Package	PowerDI3333-8 (Type UXB)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3 V

DMC6070LFDH Series

Complementary Pair Enhancement Mode MOSFET

Part	Package / Case	Supplier Device Package	Drain to Source Voltage (Vdss)	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	FET Feature
Diodes Inc DMC6070LND-13	8-PowerVDFN	PowerDI3333-8 (Type UXB)	60 V	N and P-Channel	11.5 nC	Surface Mount	MOSFET (Metal Oxide)	-55 °C	150 °C	3 V	1.4 W	85 mOhm	2.4 A 3.1 A	731 pF
Diodes Inc DMC6070LND-7	8-PowerVDFN	PowerDI3333-8 (Type UXB)	60 V	N and P-Channel	11.5 nC	Surface Mount	MOSFET (Metal Oxide)	-55 °C	150 °C	3 V	1.4 W	85 mOhm	2.4 A 3.1 A	731 pF
Diodes Inc DMC6070LFDH-7	8-VDFN	V-DFN3030-8	60 V	N and P-Channel	11.5 nC	Surface Mount	MOSFET (Metal Oxide)	-55 °C	150 °C	3 V	1.4 W	85 mOhm	2.4 A 3.1 A	731 pF	Logic Level Gate

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.18
		10	$ 0.74
		100	$ 0.49
		500	$ 0.38
		1000	$ 0.35
	Digi-Reel®	1	$ 1.18
		10	$ 0.74
		100	$ 0.49
		500	$ 0.38
		1000	$ 0.35
	Tape & Reel (TR)	2000	$ 0.29
		6000	$ 0.28
		10000	$ 0.26

Description

General part information

DMC6070LFDH Series

This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
