30-Y-50-030

Active

Jonard Tools

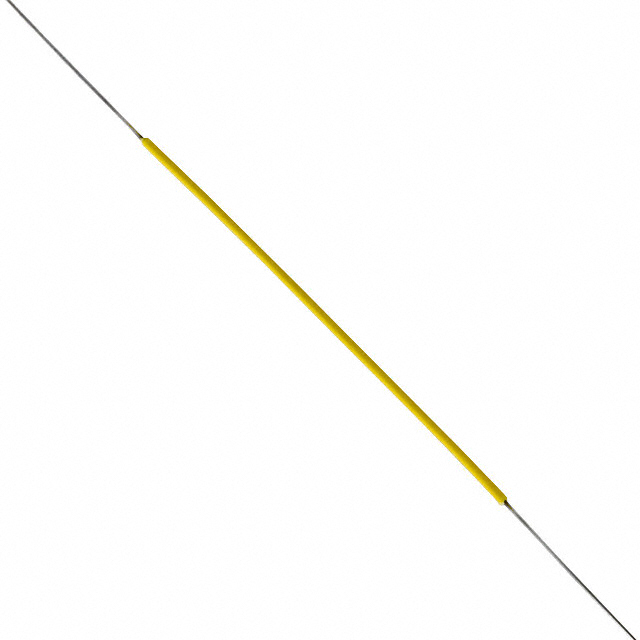

WIRE WW 30AWG PVDF YELLW 5" 50PC

Search across all available documentation for this part.

Active

Jonard Tools

WIRE WW 30AWG PVDF YELLW 5" 50PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	30-Y-50-030	30-Y-50 Series

Conductor Diameter [diameter]	0.25 mm	0.25 mm
Conductor Diameter [diameter]	0.01 in	0.01 in
Conductor Material	Copper, Bare	Copper, Bare
Conductor Plating	Silver	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Jacket Color	Yellow	Yellow
Length	-	3 - 7 in
Length	-	76.2 - 177.7 mm
Length	-	0.25 - 0.583 ft
Length [x]	5 "	4 - 5 "
Length [x]	127 mm	101.6 - 127 mm
Length [x]	0.417 '	0.333 - 0.417 '
Ratings	VW-1, UL Style 1423	VW-1, UL Style 1423
Wire Gauge	30 AWG	30 AWG

CABLE ACCESSORIES CABLE WRAP COPPER YELLOW SILVER KYNAR™

Part	Conductor Material	Wire Gauge	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Jacket (Insulation) Material	Conductor Plating	Ratings	Length	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length [x]	Length [x]	Length [x]
Jonard Tools 30-Y-50-050	Copper, Bare	30 AWG	0.25 mm	0.01 in	Polyvinylidene Fluoride (PVDF)	Silver	UL Style 1423, VW-1	7 in	177.7 mm	0.583 ft	0.019 in	0.5 mm	Yellow
Jonard Tools 30-Y-50-010	Copper, Bare	30 AWG	0.25 mm	0.01 in	Polyvinylidene Fluoride (PVDF)	Silver	UL Style 1423, VW-1	3 "	76.2 mm	0.25 ft	0.019 in	0.5 mm	Yellow
Jonard Tools 30-Y-50-030	Copper, Bare	30 AWG	0.25 mm	0.01 in	Polyvinylidene Fluoride (PVDF)	Silver	UL Style 1423, VW-1				0.019 in	0.5 mm	Yellow	5 "	127 mm	0.417 '
Jonard Tools 30-Y-50-020	Copper, Bare	30 AWG	0.25 mm	0.01 in	Polyvinylidene Fluoride (PVDF)	Silver	UL Style 1423, VW-1				0.019 in	0.5 mm	Yellow	4 "	101.6 mm	0.333 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 30 AWG Yellow Polyvinylidene Fluoride (PVDF) 0.417' (127.00mm, 5.00")
