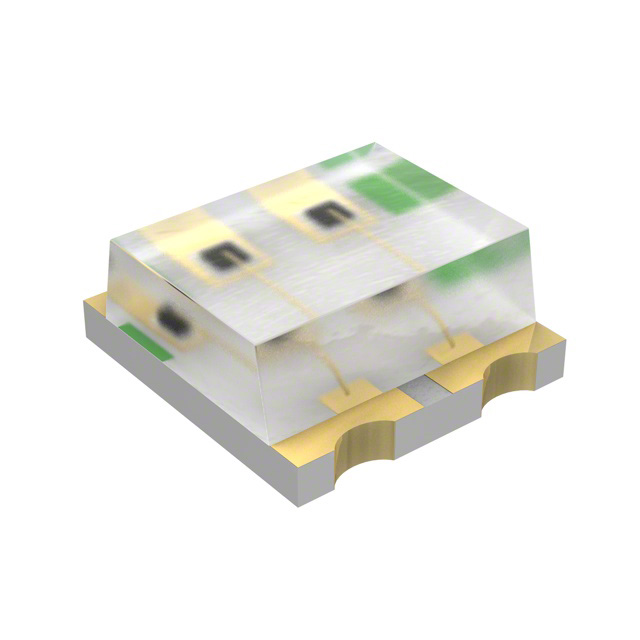

SML-LX0606IGC-TR
ActiveLumex Opto/Components Inc.
LED GREEN/RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LX0606IGC-TR
ActiveLumex Opto/Components Inc.
LED GREEN/RED CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SML-LX0606IGC-TR | SML-LX0606 Series |
|---|---|---|
| - | - | |
| Color | Red, Green | Green, Yellow, Red |
| Configuration | Independent | Independent |
| Current - Test | 20 mA, 20 mA | 20 mA |
| Current - Test | - | 20mA Red, 20mA Yellow |
| Height (Max) | - | 1.5 mm |
| Height (Max) [Max] [z] | 0.7 mm | 0.7 mm |
| Lens Color | Colorless | Colorless |
| Lens Size [x] | 1.1 mm | 1.1 - 1.5 mm |
| Lens Size [y] | 1.5 mm | 1.2 - 1.5 mm |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 10mcd Red, 10mcd Green | 10mcd Yellow, 10mcd Green, 10mcd Red |
| Millicandela Rating | - | 100 - 150 mcd |
| Millicandela Rating | - | 50 mcd |
| Millicandela Rating | - | 50 mcd |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0606, 1616 Metric | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm | 1.6 mm |
| Size / Dimension [y] | 1.5 mm | 1.5 mm |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V | 2 - 2.2 V |
| Voltage - Forward (Vf) (Typ) | - | 2 V |
| Voltage - Forward (Vf) (Typ) | - | 2 V |
| Wavelength - Peak | 565 nm, 635 nm | 565 - 636 nm |
| Wavelength - Peak | - | 639 nm |
| Wavelength - Peak | - | 575 nm |
SML-LX0606 Series
LED GRN/YLW CLEAR SMD
| Part | Lens Style | Wavelength - Peak | Height (Max) [Max] [z] | Lens Size [x] | Lens Size [y] | Current - Test | Package / Case | Viewing Angle | Lens Transparency | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Voltage - Forward (Vf) (Typ) | Lens Color | Configuration | Color | Millicandela Rating | Millicandela Rating | Current - Test | Height (Max) [Max] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SML-LX0606YGC-TR | Rectangle with Flat Top | 565 nm, 585 nm | 0.7 mm | 1.1 mm | 1.5 mm | 20 mA, 20 mA | 0606, 1616 Metric | 120 ° | Clear | 1.5 mm | 1.6 mm | Surface Mount | 2.1 V, 2.2 V | Colorless | Independent | Green, Yellow | 10mcd Green, 10mcd Yellow | |||||||||
Lumex Opto/Components Inc. SML-LX0606SRSGC-TR | ||||||||||||||||||||||||||
Lumex Opto/Components Inc. SML-LX0606SISYC-TR | Rectangle with Flat Top | 590 nm, 636 nm | 1.5 mm | 1.2 mm | 0606, 1616 Metric | 120 ° | Clear | 1.5 mm | 1.6 mm | Surface Mount | 2 V, 2 V | Colorless | Independent | Red, Yellow | 100 mcd, 150 mcd | 20mA Red, 20mA Yellow | 1.5 mm | |||||||||
Lumex Opto/Components Inc. SML-LX0606SISUGC/A | Rectangle with Flat Top | 1.5 mm | 1.2 mm | 20 mA, 20 mA | 0606, 1616 Metric | 120 ° | Clear | 1.5 mm | 1.6 mm | Surface Mount | Colorless | Independent | Green, Red | 1.5 mm | 2 V | 2 V | 50 mcd | 50 mcd | 639 nm | 575 nm | ||||||
Lumex Opto/Components Inc. SML-LX0606IGC-TR | Rectangle with Flat Top | 565 nm, 635 nm | 0.7 mm | 1.1 mm | 1.5 mm | 20 mA, 20 mA | 0606, 1616 Metric | 120 ° | Clear | 1.5 mm | 1.6 mm | Surface Mount | 2 V, 2.2 V | Colorless | Independent | Green, Red | 10mcd Green, 10mcd Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.69 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.69 | ||
| 10 | $ 0.46 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
SML-LX0606 Series
Green, Red LED Indication - Discrete 2.2V Green, 2V Red 0606 (1616 Metric)
