LMR-400-FR-4310M-BM(QTY:80ft)
ActiveMcGill Microwave Systems
LMR 400 FR CABLE ASSY 80FT 4.3/1
LMR-400-FR-4310M-BM(QTY:80ft)
ActiveMcGill Microwave Systems
LMR 400 FR CABLE ASSY 80FT 4.3/1
Description
General part information
LMR-400-FR-4310M-BM(QTY:80ft)

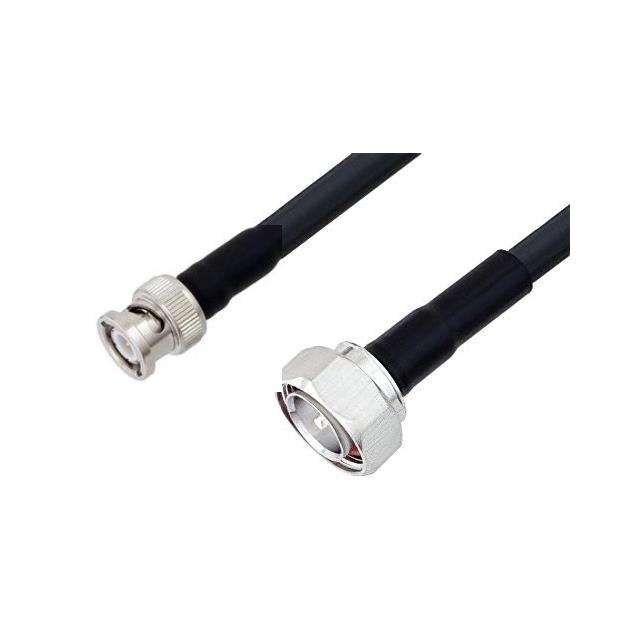

Cable Assembly Coaxial 4.3/10 to BNC LMR 400 960.0" (24.4m) 80.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-FR-4310M-BM(QTY:80ft) |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Length | 960 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | 4.3/10 to BNC |
