B58043E5254M052
ActiveEPCOS - TDK Electronics

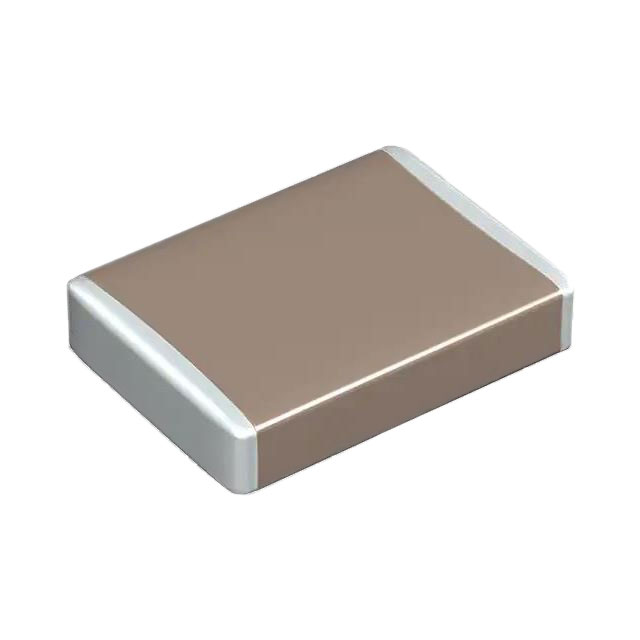

CAP CER 0.25UF 500V 2220
B58043E5254M052
ActiveEPCOS - TDK Electronics
CAP CER 0.25UF 500V 2220
Description
General part information
B58043E5254M052
0.25 µF ±20% 500V Ceramic Capacitor 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B58043E5254M052 |
|---|---|
| Applications | SMPS Filtering, Boardflex Sensitive, Automotive |
| Capacitance | 0.25 µF |
| Features | Soft Termination, High Temperature, Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2220 (5750 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.197 in |
| Thickness (Max) | 0.063 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
