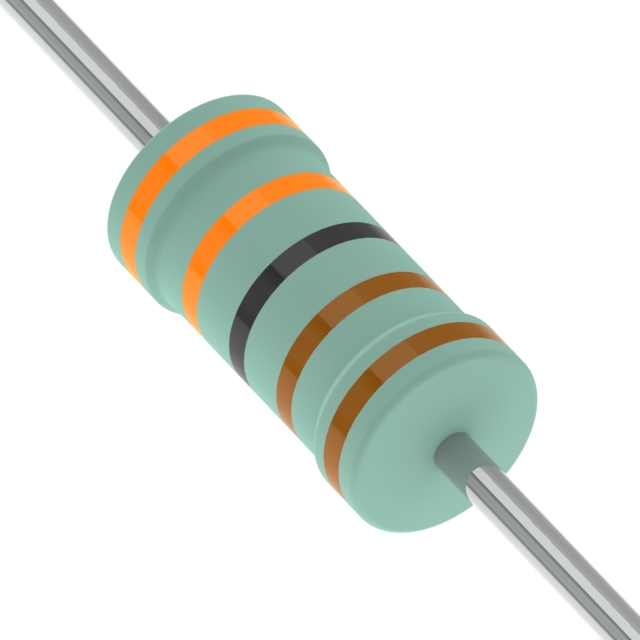

WS5M3301J
ActiveBourns Inc.
RES 3.3K OHM 5% 5W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
WS5M3301J
ActiveBourns Inc.
RES 3.3K OHM 5% 5W AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WS5M3301J | WS5M Series |
|---|---|---|
| Composition | Wirewound | Wirewound |
| Features | Pulse Withstanding, Flame Retardant Coating, Safety | Pulse Withstanding, Flame Retardant Coating, Safety |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | Axial | Axial |
| Power (Watts) | 5 W | 5 W |
| Resistance | 3300 Ohms | 47 - 3300 Ohms |
| Size / Dimension [diameter] | 6.5 mm | 6.5 mm |
| Size / Dimension [diameter] | 0.256 in | 0.256 in |
| Size / Dimension [x] | 0.689 in | 0.689 in |
| Size / Dimension [x] | 17.5 mm | 17.5 mm |
| Supplier Device Package | Axial | Axial |
| Temperature Coefficient | 200 ppm/°C | 200 ppm/°C |
| Tolerance | 5 % | 5 % |
WS5M Series
THROUGH HOLE RESISTOR, 47 OHM, WS SERIES, 5 W, ± 5%, AXIAL LEADED
| Part | Composition | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Temperature Coefficient | Operating Temperature [Min] | Operating Temperature [Max] | Resistance | Supplier Device Package | Package / Case | Number of Terminations | Features | Power (Watts) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. WS5M47R0J | Wirewound | 0.689 in | 6.5 mm | 17.5 mm | 0.256 in | 200 ppm/°C | -55 °C | 200 °C | 47 Ohms | Axial | Axial | 2 | Flame Retardant Coating, Pulse Withstanding, Safety | 5 W | 5 % |
Bourns Inc. WS5M3301J | Wirewound | 0.689 in | 6.5 mm | 17.5 mm | 0.256 in | 200 ppm/°C | -55 °C | 200 °C | 3300 Ohms | Axial | Axial | 2 | Flame Retardant Coating, Pulse Withstanding, Safety | 5 W | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| Tape & Box (TB) | 500 | $ 0.13 | ||
| 1000 | $ 0.12 | |||
Description
General part information
WS5M Series
3.3 kOhms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
