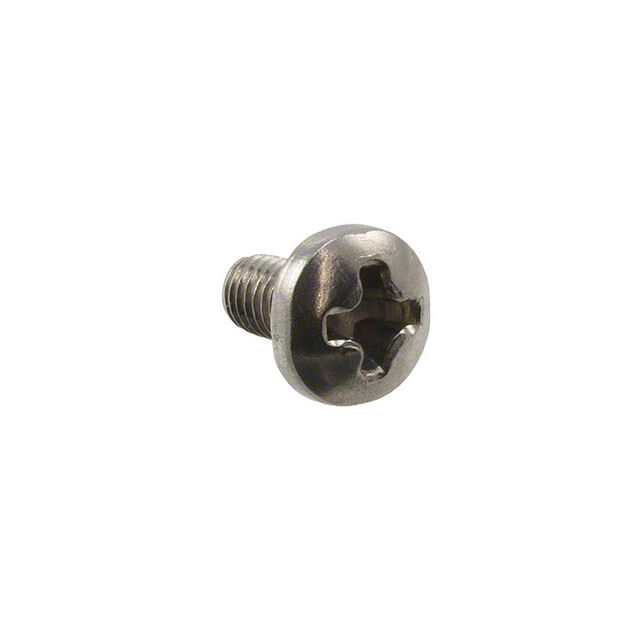

RM3X6MM 2701
ActiveAPM HEXSEAL
MACH SCREW PAN HEAD PHILLIPS M3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM3X6MM 2701
ActiveAPM HEXSEAL
MACH SCREW PAN HEAD PHILLIPS M3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RM3X6MM 2701 | RM3 Series |
|---|---|---|
| Drive Type | Phillips | Phillips |
| Features | Self Sealing | Self Sealing |
| Head Diameter | - | 0.264 in |
| Head Diameter | - | 6.7 mm |
| Head Height | 2.4 mm | 2.4 mm |
| Head Height | 0.094 in | 0.094 in |
| Length - Below Head | 6 mm | 4 - 6 mm |
| Length - Below Head | 0.236 in | 0.157 - 0.236 in |
| Length - Below Head | - | 10 - 11.99 mm |
| Length - Below Head | - | 0.394 - 0.472 in |
| Length - Below Head | - | 8 mm |
| Length - Below Head | - | 0.315 in |
| Length - Overall | - | 0.25 in |
| Length - Overall [x] | 8.69 mm | 6.35 - 14.4 mm |
| Length - Overall [x] | 0.342 in | 0.25 - 0.567 in |
| Material | Stainless Steel | Stainless Steel |
| Screw Head Type | Pan Head | Pan Head |
| Thread Size | M3 | M3 |
| Type | Machine Screw | Machine Screw |
RM3 Series
MACH SCREW PAN HEAD PHILLIPS M3
| Part | Length - Overall [x] | Length - Overall [x] | Screw Head Type | Thread Size | Features | Type | Material | Head Height | Head Height | Drive Type | Length - Below Head | Length - Below Head | Length - Below Head [x] | Length - Below Head [x] | Head Diameter [diameter] | Head Diameter | Length - Overall [x] | Length - Below Head [custom] | Length - Below Head [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL RM3X6MM 2701 | 8.69 mm | 0.342 in | Pan Head | M3 | Self Sealing | Machine Screw | Stainless Steel | 2.4 mm | 0.094 in | Phillips | 6 mm | 0.236 in | |||||||
APM HEXSEAL RM3X10MM 2701 | 12.4 mm | 0.488 in | Pan Head | M3 | Self Sealing | Machine Screw | Stainless Steel | 2.4 mm | 0.094 in | Phillips | 10 mm | 0.394 in | 0.264 in | 6.7 mm | |||||
APM HEXSEAL RM3X4MM 2701 | 6.35 mm | 0.25 in | Pan Head | M3 | Self Sealing | Machine Screw | Stainless Steel | 2.4 mm | 0.094 in | Phillips | 4 mm | 0.157 in | 0.264 in | 6.7 mm | 0.25 in | ||||
APM HEXSEAL RM3X8MM 2701 | 10.4 mm | 0.409 " | Pan Head | M3 | Self Sealing | Machine Screw | Stainless Steel | 2.4 mm | 0.094 in | Phillips | 0.264 in | 6.7 mm | 8 mm | 0.315 in | |||||
APM HEXSEAL RM3X12MM 2701 | 14.4 mm | 0.567 in | Pan Head | M3 | Self Sealing | Machine Screw | Stainless Steel | 2.4 mm | 0.094 in | Phillips | 11.99 mm | 0.472 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 5 | $ 0.48 | |||
| 10 | $ 0.45 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.30 | |||
Description
General part information
RM3 Series
M3 Pan Head Machine Screw Phillips Drive Stainless Steel
