QMH26EPXLPCQ7
ActiveBANNER ENGINEERING
QMH26 HYGIENIC SERIES: LOW CONTRAST COAXIAL POLARIZED RETRO
QMH26EPXLPCQ7
ActiveBANNER ENGINEERING
QMH26 HYGIENIC SERIES: LOW CONTRAST COAXIAL POLARIZED RETRO
Description
General part information

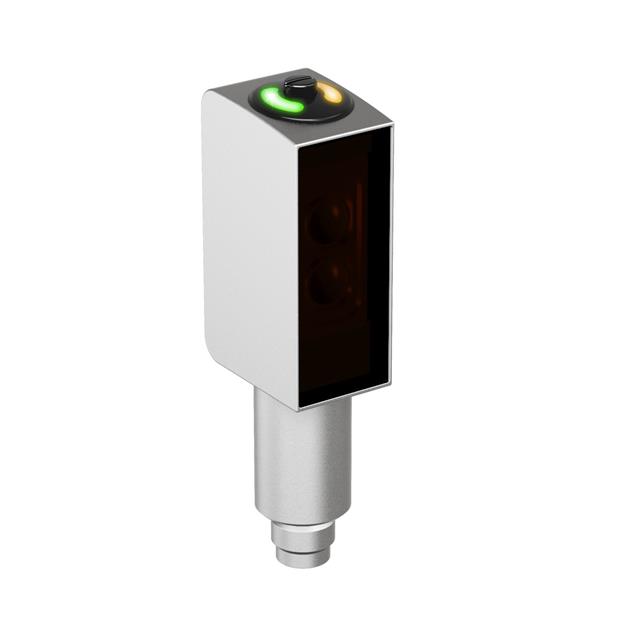

QMH26EPXLPCQ7
Retroreflective, Polarized Optical Sensor 102.362" (2.6m) PNP - Dark-ON/Light-ON - Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | QMH26EPXLPCQ7 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector |
| Ingress Protection | IP69K |
| Light Source | Red LED |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | Light-ON - Selectable, Dark-ON, Selectable, Light-ON, PNP, PNP - Dark-ON |
| Response Time | 500 µs |
| Sensing Distance | 102.362 " |
| Sensing Method | Polarized, Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
