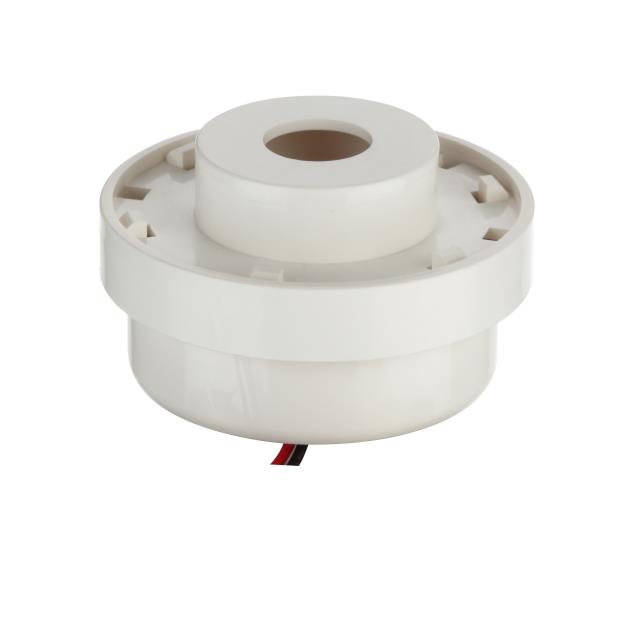

EFM-320SA

Active

East Electronics

BUZZER 12V 45MM WIRE

Search across all available documentation for this part.

Active

East Electronics

BUZZER 12V 45MM WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

BUZZER 12V 45MM WIRE

Part	Operating Mode	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Sound Pressure Level (SPL)	Current - Supply	Mounting Type	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]
East Electronics EFM-320SA	Continuous	Wire Leads	45 mm	1.772 in	26 mm	1.024 in	12 VDC	105 dB	35 mA	Wire Lead	2.9 kHz	-20 C	70 °C	16 V	3 V
East Electronics EFM-320S	Continuous	Wire Leads	45 mm	1.772 in	26 mm	1.024 in	12 VDC	105 dB	35 mA	Wire Lead	2.9 kHz	-20 C	70 °C	16 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers 12 V 35mA 2.9kHz 105dB @ 12V, 30cm Wire Lead Wire Leads
